Extended hydraulic line number 23 for BMW E46 3-Series
$199.99

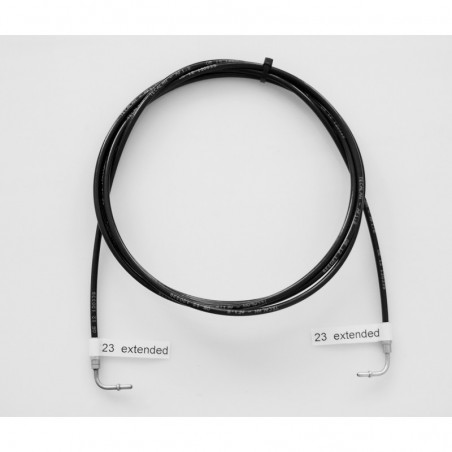

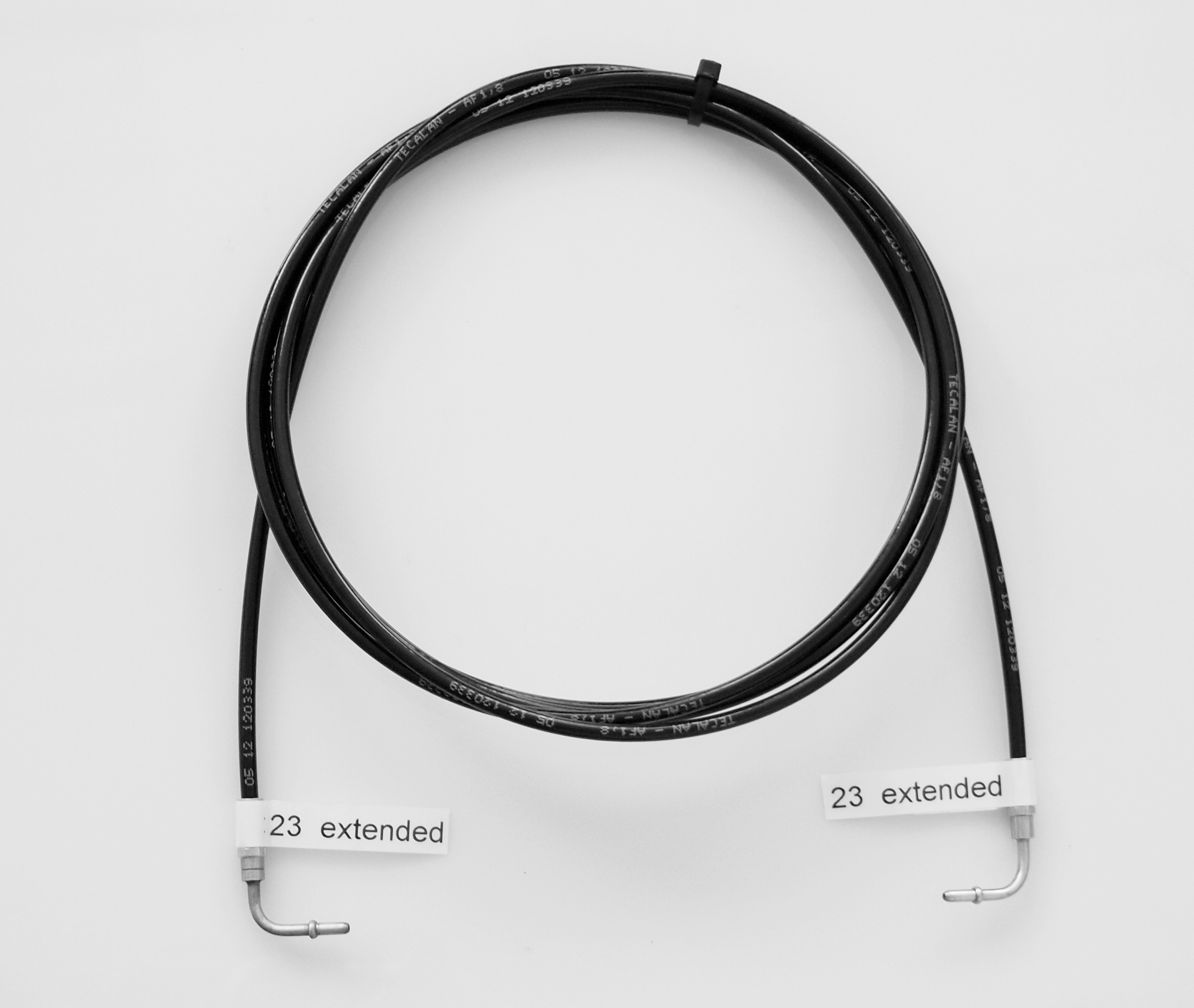

New, Extended Hydraulic Line # 23 for 2000-2006 BMW E46 convertibles.

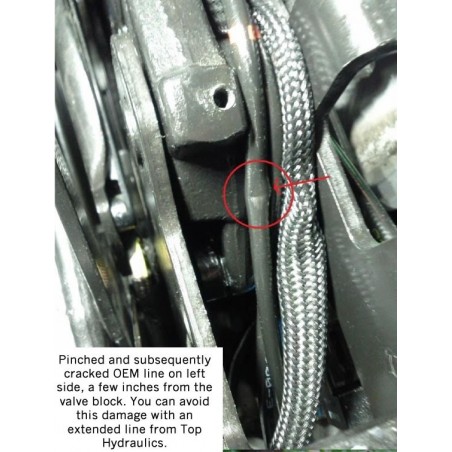

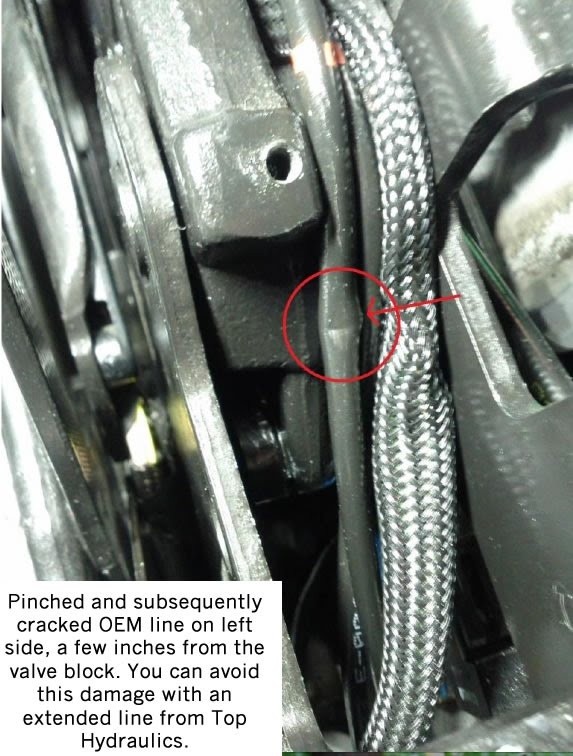

Extended version of the OEM hose, which greatly reduces labor needed to replace and eliminates the same manufacturing/design error seen with this hose originally in your 3-Series Convertible. Only available from Top Hydraulics.
No sales tax for orders in the USA
We provide world class technical support
3-year standard warranty (should last decades)
This line goes from the valve block on the left side to the right main drive cylinder. It is a common failure in E46 convertibles. If you buy OEM part number 54347025598 for more money from the dealer, you will likely get the same problem again. Top Hydraulics ships an EXTENDED LINE. Hose material and fittings made in Germany; hose assembled and manufactured in the US. Please see the detailed DIY guide for line replacement in our DIY section - it shows you how you can save a lot of time in replacing this hose, plus install a product that is far less likely to break again.

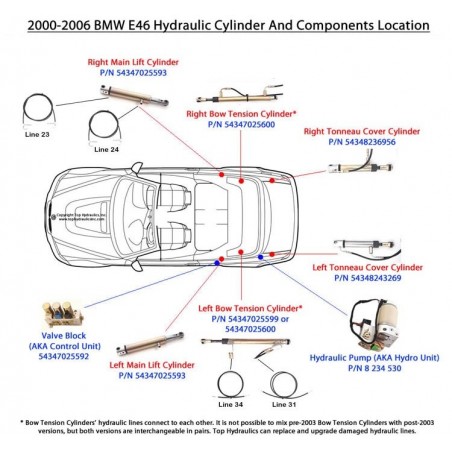

Lines 23 and 24 go from the valve block (aka solenoid block or hydraulic unit) to the right main lift cylinder, and they are routed close to each other. Each is secured to the valve block by a retaining disc. Line 23 connects to the upper retaining disc, and line 24 connects to the lower one. The retaining discs have numbers engraved on them that match the hydraulic lines they are holding in place.
| line 23, ref 54347025598. |
Specific References
Related Products:
Package deal!
You send in your cylinders first; we will upgrade them to better than new condition. Optional core exchange has an inventory management surcharge, plus a $600 deposit.
Includes two main drive cylinders, two bow tension cylinders, and two tonneau cover cylinders.
Price
$800.00
It is highly recommended to upgrade the bow tension cylinders in pairs. You send in your cylinder(s) first.
Core exchange is available only for pairs of bow tension cylinders - see our separate listing.
Top Hydraulics replaces and upgrades all seals in this cylinder, including the port seals where the hoses go into the cylinder housing.
Price
$275.00
New, Extended Hydraulic Line # 31 for 2003-2006 BMW E46 convertibles.
Slightly extended version of the OEM hose, which is not available from BMW. Only available from Top Hydraulics. This line is for the newer version bow tension cylinder on the left side, bottom fitting, where the lines are attached via a screwed on clamp.
Price
$179.99
Top Hydraulics upgrades the seals in these cylinders with far superior material. It is highly recommended to upgrade the tonneau/case cover cylinders in pairs. You send in your cylinder(s) first, or order from our stock with the core exchange option below.
BMW P/N: 54348236956
Price
$175.00
BMW E46 1998-2006|330ci, 325ci, 323ci, M3, etc
Rebuild service for Hydraulic Valve Block aka Control Unit BMW p/n 54347025592
Send in your part for for rebuild/upgrade service, or get immediate shipment from our inveentory if you choose optional core exchange.
Price
$350.00
New, Extended Hydraulic Line # 24 for 2000-2006 BMW E46 convertibles.
Extended version of the OEM hose, which greatly reduces labor needed to replace and eliminates the same manufacturing/design error seen with this hose originally in your 3-Series Convertible. Only available from Top Hydraulics.
Price
$199.99
You send in your malfunctioning E46-Series hydro unit, and Top Hydraulics rebuilds it. The rebuild includes electric motor replacement or rewinding if necessary, service and check of all internal pump components, upgrade of internal seals in the pump, and full bench test to assure that factory specs are exceeded. Three years warranty.
p/n 8 234 530 or 54347025595 or HB70346-002
Price
$500.00
New, Extended Hydraulic Line # 34 for 2003-2006 BMW E46 convertibles.
Slightly extended version of the OEM hose, which is not available from BMW. Only available from Top Hydraulics. This line is for the newer version bow tension cylinder on the left side, top fitting, where the lines are attached via a screwed on clamp.
Price
$179.99
This is a special Core exchange option only.
We ship you a pair of E46 Bow Tension Cylinders from our inventory, and you send us back your old parts for a refund of your $300 deposit.
NOTE: If you have a 2003 model, we will need to know if your left bow tension cylinder has a detachable (clip-on) aluminum line fitting before you place your order
Price
$850.00
Special option: Core exchange. This means that you get a rebuilt & upgraded pump from Top Hydraulics' inventory first, then you ship back your original pump for credit of your $200 core refund. Top Hydraulics ships a pump as pictured: no mounting frame and no wiring harness, in order to keep the shipping cost low. You get a pump that has been rebuilt to outlast and outperform brand new ones.
BMW part number 54347025595, see more detailed notes below. Aka 54348234530. Number printed on the pump is normally 8 234 530.
Please make a special note in your order if you have a model year 2000 or 2001.
Price
$725.00
Replace one crimped-on Hydraulic Line # 31, 32, 33, or 34 on Bow Tension Cylinders for 2000-2003 BMW E46 convertibles.
Early model years (cut-off somewhere in 2003) have bow tension cylinders aka clamping bar cylinders with hydraulic lines that cannot be removed from the cylinder. Send in your left side cylinder, and Top Hydraulics will replace the line with OEM material.
Price
$200.00
Top Hydraulics upgrades the seals in these cylinders with far superior material. It is highly recommended to upgrade the tonneau/case cover cylinders in pairs. Send in your cylinders first, or order from our stock with the core exchange option below.
BMW part number 54348243269
Price
$175.00
Rebuild/upgrade service for left bow tension cylinder in 2000 - 2006| BMW E46 convertible chassis
It is highly recommended to upgrade the bow tension cylinders in pairs. You send in your cylinder(s) first.
Price
$125.00
Package deal! Includes Rebuild/Upgrade of all 6 hydraulic cylinders and the hydraulic pump unit.
You send in your parts first and we will upgrade them to better than new condition, or choose the core exchange option and we ship from our inventory first.
Price
$1,200.00
Rebuild/upgrade service for single main lift cylinder 2000 - 2006| BMW E-46 chassis
Rebuild/upgrade service (using best seals available ) for BMW convertible hydraulic lifting system. It is highly recommended to upgrade the main lift cylinders in pairs. Send in your cylinders or order from our stock with optional Core Exchange.
Price
$150.00
New, Extended Hydraulic Line # 23 for 2000-2006 BMW E46 convertibles.
Extended version of the OEM hose, which greatly reduces labor needed to replace and eliminates the same manufacturing/design error seen with this hose originally in your 3-Series Convertible. Only available from Top Hydraulics.
