Hydraulic Line 11 for Chevy SSR Convertible 88980386
  • Hydraulic Line 11 for Chevy SSR Convertible 88980386
  • Hydraulic Line 11 for Cadillac XLR

Hydraulic Line 11 - Cadillac XLR Convertible

$149.99

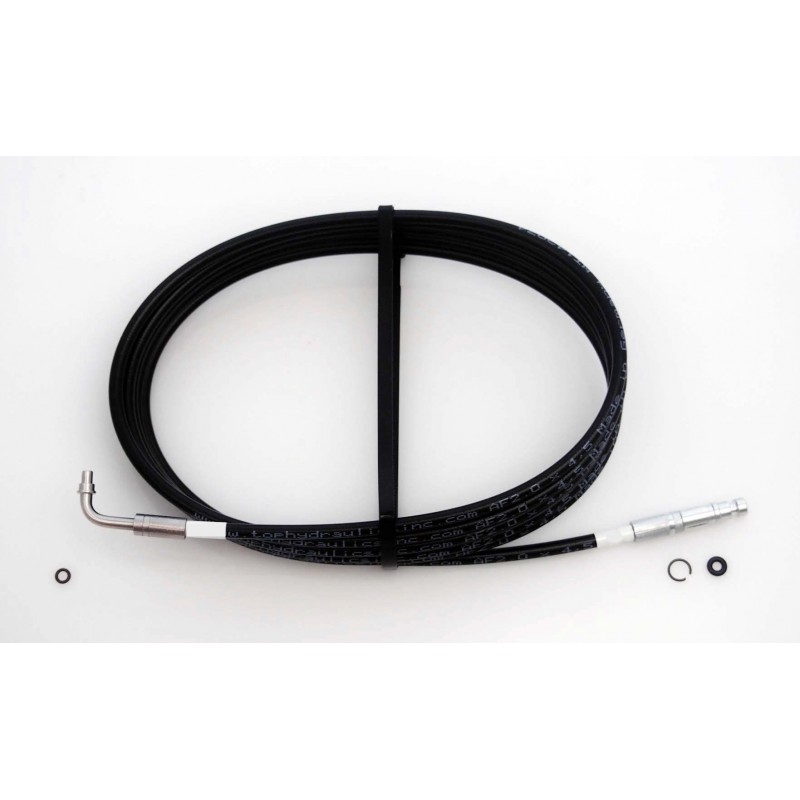

Upgraded Single Hydraulic Line #11 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the shaft end of the left side Main Lift cylinder to the Hydraulic Pump.

Hoses 11 and 12 are sold together by Cadillac as P/N 88957093.

This listing is for a single hose #11 only.

Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

Top Hydraulics replaces the OEM hose material on your complete convertible top hose assembly with far superior material. The OEM hoses are rated at an operating pressure of 3,000 psi; Top Hydraulics manufactures these hoses with a rated burst pressure rating of 23,200 psi.

The outer diameter (OD) of the front hoses is smaller than that of the OEM hoses, and much smaller than that of brake hoses. (Some small shops try to manufacture convertible top lines out of brake hoses with braided stainless jackets). The smaller OD makes the installation easier, while not posing any compromise in performance. The lines are clearly labeled on each end (telling you where they connect to), and they come with new o-rings. The hose material is sourced in Germany, the hoses are assembled in the US, and these hoses will not crumble apart like your original ones.





88957093

Specific References

Related Products:

Upgraded Single Hydraulic Line #61 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the shaft end of the Center Stowage Compartment Cylinder to the Hydraulic Pump.

Hoses 61 and 62 are sold together by Cadillac as P/N 88957096.

This listing is for a single hose #61 only.

Price
$149.99
Quick view

Upgraded Single Hydraulic Line #33 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the shaft end of the right side Stowage Compartment Cylinder to the Hydraulic Pump.

Hoses 33 and 34 are sold together by Cadillac as P/N 88957094.

This listing is for a single hose #33 only.

Price
$149.99
Quick view

Core exchange for a full set of eight '03-'09 Cadillac XLR Convertible hydraulic cylinders. Includes:

2 ea. p/n 88957085 (main lift cylinder)

3 ea. p/n 88957086 (tonneau cylinder)

2 ea p/n 88957088 (deck lid cylinder)

1 ea p/n 88957089 (front latch cylinder

Price already includes $1200 deposit, see notes below

Price
$2,700.00
Quick view

Upgraded Single Hydraulic Line #31 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the shaft end of the left side Stowage Compartment Cylinder to the Hydraulic Pump.

Hoses 31 and 32 are sold together by Cadillac as P/N 88957095.

This listing is for a single hose #31 only.

Price
$149.99
Quick view

You send in your malfunctioning XLR convertible hydraulic pump unit 88958028, and we rebuild it for $800*.

Price
$800.00
Quick view

Upgraded Single Hydraulic Line #14 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the bottom end of the right side Main Lift cylinder to the Hydraulic Pump.

Hoses 13 and 14 are sold together by Cadillac as P/N 88957092.

This listing is for a single hose #14 only.

Price
$149.99
Quick view

Rebuild/Upgrade Service for single '03-'09 Cadillac XLR Tonneau Hydraulic Cylinder for the convertible top system.

Send in your part for rebuild service, or order directly from our stock with core exchange for $200 + $150 deposit.

P/N 88957086

Price
$150.00
Quick view

Upgraded Hydraulic Line #37 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the bottom end of the right side Stowage Compartment Cylinder to the Hydraulic Pump.

Hoses 33 and 37 are sold together by Cadillac as P/N 88957094.

This listing is for a single hose #37 only.

Price
$149.99
Quick view

Upgraded Single Hydraulic Line #13 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the shaft end of the right side Main Lift cylinder to the Hydraulic Pump.

Hoses 13 and 14 are sold together by Cadillac as P/N 88957092.

This listing is for a single hose #13 only.

Price
$149.99
Quick view

Upgraded Single Hydraulic Line #44 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the bottom end of the right side Deck Lid Cylinder to the Hydraulic Pump.

Hoses 43 and 44 are sold together by Cadillac as P/N 88957090.

This listing is for a single hose #44 only.

Price
$149.99
Quick view

Rebuild/Upgrade Service for one '03-'09 Cadillac XLR Front Latch Hydraulic Cylinder.  Send in your cylinder first, or select "Order now with core exchange".

Replaced and improved rod seal, piston seal, cap seal, gland seal, wiper, and port seals make this part better than a brand new one, with an expected service life of 30-50 years under normal circumstances.

P/N 88957089

Price
$150.00
Quick view

Rebuild/Upgrade Service for single '03-'09 Cadillac XLR Folding Top Main Lift Hydraulic Cylinder for the convertible top. The XLR has two of these cylinders. They actuate the hard top frame, raising or lowering your top. They are mounted in the hard top frame.

Send in your part for rebuild service, or order directly from our stock with core exchange for $200 + $220 deposit.

Please see note about potential rust damage in the detailed description below.

We currently have enough inventory only to supply the main lift cylinders as part of a complete set of eight cylinders.

P/N 88957085

Price
$150.00
Quick view

Upgraded Single Hydraulic Line #62 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the bottom end of the Center Stowage Compartment Cylinder to the Hydraulic Pump.

Hoses 61 and 62 are sold together by Cadillac as P/N 88957095.

This listing is for a single hose #62 only.

Price
$149.99
Quick view

Upgraded Single Hydraulic Line #52 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the bottom end of the Front Latch Cylinder to the Hydraulic Pump.

This listing is for a single hose #52 only.

Price
$189.99
Quick view

Upgraded Single Hydraulic Line #12 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the bottom end of the left side Main Lift cylinder to the Hydraulic Pump.

Hoses 11 and 12 are sold together by Cadillac as P/N 88957093.

This listing is for a single hose #12 only.

Price
$149.99
Quick view

Upgraded Single Hydraulic Line #51 manufactured by Top Hydraulics, Inc. for your Cadillac XLR Convertible.

This line runs from the shaft end of the Front Latch Cylinder to the Hydraulic Pump.

This listing is for a single hose #51 only.

Price
$189.99
Quick view
