Ferrari F355 Full set of eleven convertible hydraulic Pipes

Set of 11 hoses

New product

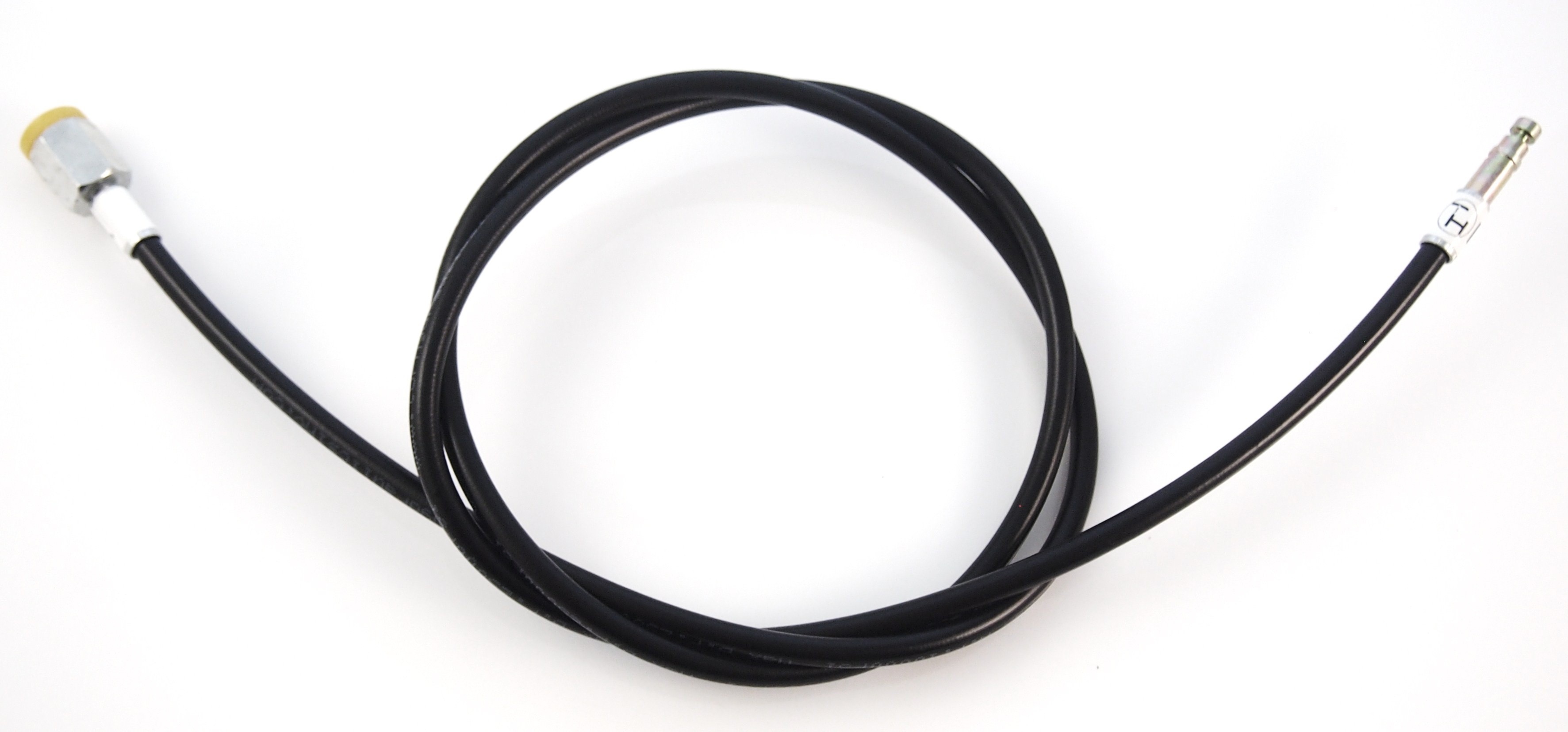

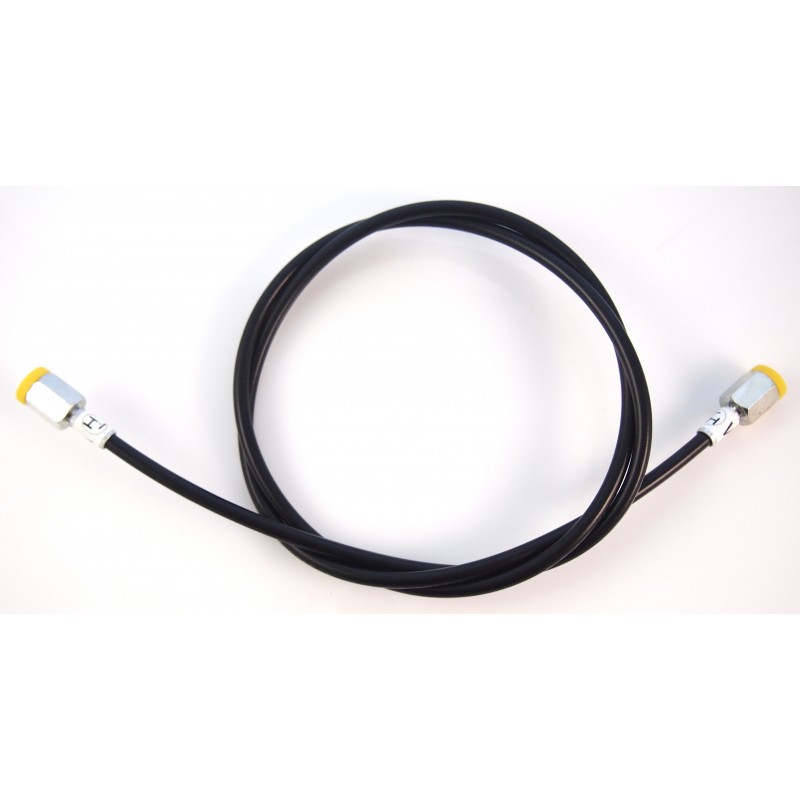

Ferrari F355 Full set of convertible top hydraulic pipes







New hydraulic hose set (also known as lines or pipes), far exceeding OEM specs. 10,000 psi working pressure, 25,000 psi burst pressure, long-lasting, easy to install. The best hoses for the application, at the best price. Ferrari does not sell all hoses as a set.

p/n 64418200, 168857, 168858, 168859, 168860, 168861, 168862, 168863

$1,499.99

-+

Ferrari F355 Full set of eleven convertible top hydraulic pipes





New hydraulic hoses (also known as lines or pipes), far exceeding OEM specs. 10,000 psi working pressure, 25,000 psi burst pressure, long-lasting, and easy to install.

Any hydraulic hose that has the black outer jacket material crumbling and exposing the white webbing below, is about to fail. Many convertible and roadster manufacturers have been supplied with hose material in the late 1990s and early 2000s that simply falls apart. Top Hydraulics uses far superior material. If anyone tries to sell you hoses made of brake line hose material, be aware of the low pressure rating of such hoses and their internal flexing.

Ferrari sells some single pipes of lesser quality at outrageous prices. The remaining hoses can only be purchased for many thousands of Dollars together with the pump or cylinders, yet all hoses will fail at about the same time.

The full set includes three pipes "A" (normally part of Ferrari p/n 64418200), comprised of:

A.1 Right Main Cylinder shaft side to Pump front tee

A.2 Pump to Pump front elbow to top of left tee

A.3 Left Main Cylinder Bottom (high point) to Pump front tee

plus eight pipes "K" through "V":

168857 (L) Pipe from Valve Block to left side of Pump

168858 (N) Pipe from Valve Block to right side of Pump

168859 (K) Pipe from Valve Block to shaft side of Left (L.H.) Main Cylinder

168860 (O) Pipe from Valve to R.H. Secondary Cylinder

168861 (P) Pipe from Valve to R.H. Secondary Cylinder

168862 (R) Pipe from Valve to L.H. Secondary Cylinder

168863 (S) Pipe from Valve to L.H. Secondary Cylinder

168864 (V) Pipe from Pump to R.H. Main Cylinder

All seven pipes going to the valve block 168888 come with a separate o-ring and snap ring to install the pipe in the block. Each pipe is clearly labeled.

Shipping within the US is $10 for FedEx 2-Day Service or $40 for FedEx Priority Overnight.

International shipping is $50 via FedEx International Priority.
