Rebuild/upgrade service for Front Lock Cylinder Mercedes W209 CLK-Class Cylinder 2098001172 A209 800 11 72
  • Rebuild/upgrade service for Front Lock Cylinder Mercedes W209 CLK-Class Cylinder 2098001172 A209 800 11 72
  • 2098001172 2098000972 2098001272 2098000872 2098000772 2098000148

Rebuild/upgrade service for Front Lock Cylinder Mercedes W209 CLK-Class Cylinder

$150.00

Rebuild/upgrade service for your Mercedes W209 CLK Class front lock cylinder. You send in your cylinder for rebuild, or you pick the up-front shipping option which adds $30 surcharge plus $120 refundable deposit.

The front lock cylinder is usually the first to fail, and the remaining six in the rear will follow shortly...

Mercedes part number A 209 800 11 72 aka 2098001172 or A 209 800 11 72 64

Order Method:
Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

For optional up-front shipping (also known as core exchange), select YES in the drop down menu above - core exchange is $180/ea. plus a $120 deposit.

Watch our DIY removal videos on YouTube!

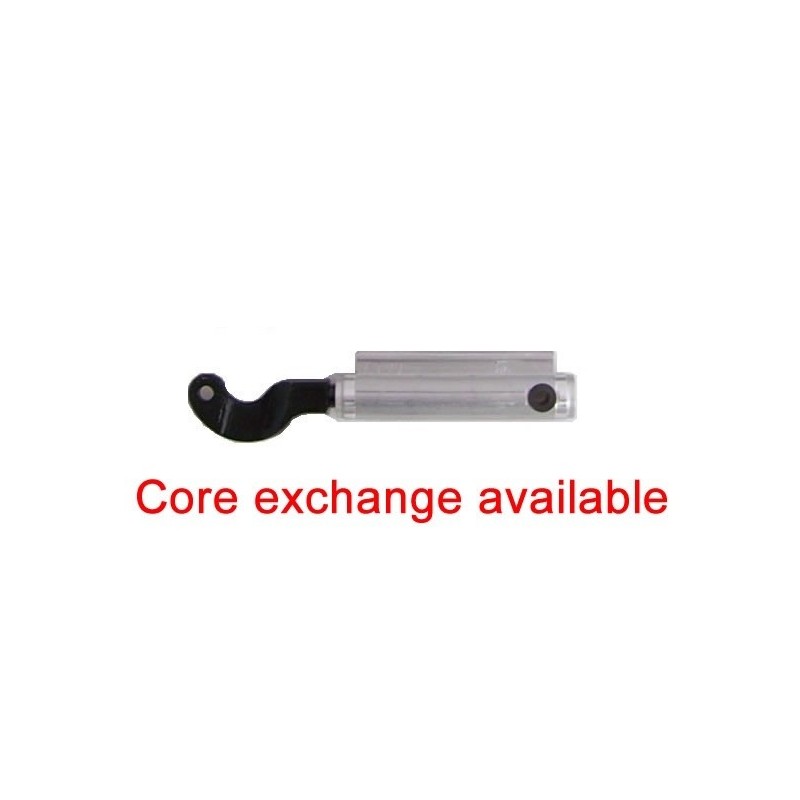

Rebuild & upgrade service for Mercedes CLK A209/W209-Class

Top Lock (Front Lock) Cylinder

Mercedes part number 2098001172. Mercedes does not put this part number on the cylinders.

Engravings on the cylinder do not match the Mercedes part number - they are serial numbers and internal references. There are typically three lines of engraving on the original part. The middle line will typically be 1605-030-B or 1605-030-C.

This is the cylinder that latches the front of the soft top to the windshield. It tends to leak first through the bottom mounting hole, where the mounting pin goes through the housing.

Top Hydraulics makes these parts better than new inside, with seven new, superior seals and reinforcement against the occasional "explosion" known to happen on OEM cylinders' bottoms. There is a lot of precision machining involved, new CNC-machined glands to accommodate the improved rod seals, and Top Hydraulics' signature wiper seal, which keeps dirt and water from entering the gland. Comes with new O-rings to put on the hoses when you install the cylinders, and an illustration on how exactly to install the O-rings.

You send in your cylinder for rebuild first (then we rebuild it, then we ship it back to you), or you pick the up-front shipping option (aka core exchange) which adds $30 surcharge plus $120 refundable deposit. Core exchange means we send the parts first from our inventory, then you send back your cores (original cylinders) to recover the core deposit. The deposit gets refunded in full to the original payment method once we receive a matching core without serious damage to the metal parts.

Hydraulic line hook-up: number 65 on the shaft side and number 66 on the bottom.

For Rebuilding Your Cylinders:  Send your cylinders to Top Hydraulics first and we will rebuild and upgrade them to better-than-new condition.

International shipping time and cost varies, we use FedEx International Priority.

Seals used by Top Hydraulics, Inc. include Viton™ and Teflon™-hybrid seals, as well as enhanced Polyurethane material, which far exceed the OEM's requirements for rigidity, but provide at least double the service life for your convertible car top actuators, based on scientific test data.

2098001172 A209800117264
