Mitsubishi Convertible Hydraulics Rebuild/Upgrade Service

Mitsubishi

We upgrade your cylinder(s) by replacing the tiny OEM rod seal with a much larger one made of superior materials, and adding custom caps made of CNC machined stainless steel to accommodate these superior seals. Our seals are not sensitive to water and are resistant to most additives in hydraulic fluid. This results in a much longer service life than the standard OEM cylinders for a fraction of the price.

Our Core Exchange option makes this as easy as buying a new cylinder - you only have to ship back your old cylinder(s) afterwards for core credit.

Top Hydraulics' also rebuilds and upgrades convertible hydraulic pumps, as well as manufacturing our own upgraded hydraulic lines.

Owning and driving a convertible with an automatic top is prestigious, convenient and exciting - let Top Hydraulics help you enjoy your beautiful car even more by making your convertible top system truly better than new!

Top Hydraulics' standard warranty is 3 years on rebuilds/upgrades of convertible top cylinders and hydraulic pumps, and on new hydraulic hoses.

Mitsubishi

Eclipse Spyder 07-12

The Convertible Top Hydraulic Pump p/n 6559A001 (78142A) in the Eclipse Spyder actuates eight Hydraulic Cylinders:

1) The Tonneau Cylinder (opening and closing the storage cover) p/n MN181812 (78146D)

2) The Toneau-Latch Cylinder (latching and unlatching the storage cover) p/n MN181808 (78146C)

3) & 4) RH and LH Main Rotary Actuator (hinge type) p/n 6559A134 (RH) and 6559A133 (LH) (78146H and 78146G, respectively)

5) & 6) RH and LH 5th Bow Cylinders (raising and lowering the rear bow with the window in it) p/n 6559A063 (RH) and 6559A064 (LH) (78146E and 78146F, respectively)

7) & 8) Secondary Cylinders (moving the front of the soft top frame, has travel sensor) p/n 6559A060 (78146B)

The pump is located under the soft top storage compartment. Removal and replacement of pump and individual cylinders is less complicated than it may appear. When removing cylinders, make sure to retract the polished cylinder shaft before removing the hydraulic line clips, in order to avoid accidental damage to the shaft by slipping tools.

Grid
List

There are 24 products.

Grid
List
Showing 1-24 of 24 item(s)

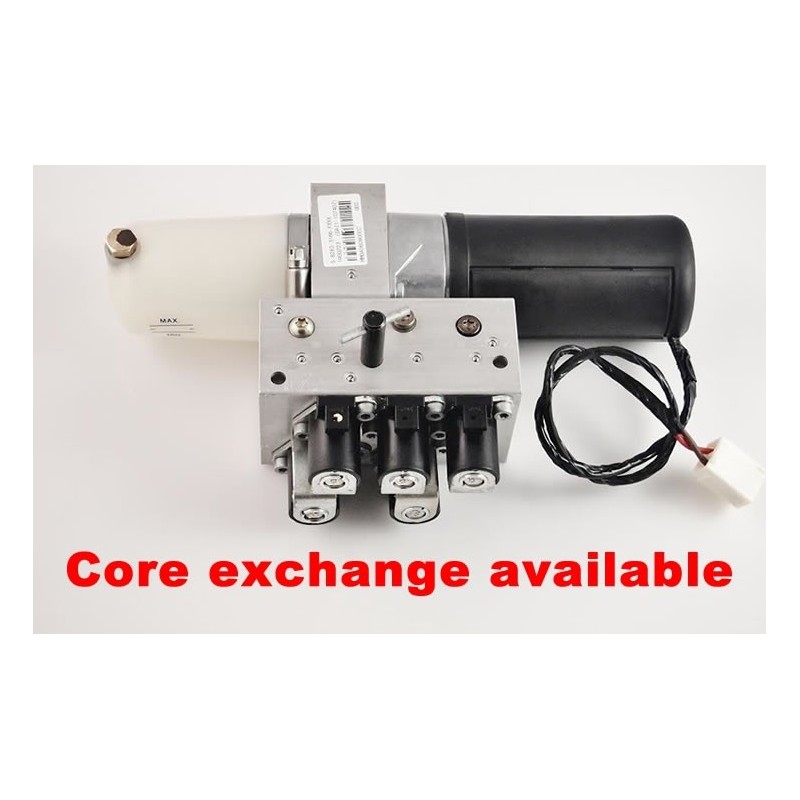

There are two options for placing your order:

1. (Most affordable) You send in your malfunctioning Mitsubishi Eclipse Hydraulic Pump, and Top Hydraulics rebuilds it.

  • The rebuild includes electric motor replacement or rewinding if necessary, service of hydraulic valves, and upgrade of internal seals in the pump to eliminate current or future pressure loss or internal bypass. Three years warranty.

OR

2. (Fastest) Expedited Core Exchange Option where Top Hydraulics ships parts from our inventory first

(includess a $200 Refundable Core Charge).

  • Option 2 means that you get a rebuilt & upgraded pump from Top Hydraulics' inventory first, then you ship back your original part for credit of your $200 core refund.Top Hydraulics ships the pump filled with fluid for plug-and-play installation. You get a pump that has been rebuilt to outlast and outperform OEM replacements.
  • Mitsubishi part number 6559A001, shown as part of PNC Part Spec 78142A in Mitsubishi parts diagrams

Price
$400.00
Quick view

There are two options for placing your order:

1. (Most affordable) You send in your leaking set of cylinders, and Top Hydraulics rebuilds them.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinders with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($1800 plus a $800 deposit).

  • Option 2 means that you get a rebuilt & upgraded set of cylinders from Top Hydraulics' inventory first, then you ship back your original set for credit of your $800 core refund. You get cylinders that have been rebuilt & upgraded to outlast and outperform OEM replacements.

Price
$1,600.00
Quick view

Left hinge, also known as LH Main Rotary Actuator

There are two options for placing your order:

1. (Most affordable) You send in your leaking Left Hinge, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($325 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

Mitsubishi part number 6559A133, shown as part of PNC Part Spec 78146G in Mitsubishi parts diagrams

P/N: 6559A133

Price
$275.00
Quick view

Right hinge, also known as RH Main Rotary Actuator

There are two options for placing your order:

1. (Most affordable) You send in your leaking Right Hinge, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($325 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.


Mitsubishi part number 6559A134, shown as part of PNC Part Spec 78146H in Mitsubishi parts diagrams

P/N: 6559A134

Price
$275.00
Quick view

There are two options for placing your order:

1. (Most affordable) You send in your leaking Tonneau Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($300 plus a $350 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $350 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

P/N: MN181812

Common engraving on the cylinder housing (middle one of the three engraved lines): 2006-030-B or 2006-030-C

Price
$250.00
Quick view

There are two options for placing your order:

1. (Most affordable) You send in your leaking Left 5th Bow Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($230 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

P/N: 6559A063

Price
$200.00
Quick view

There are two options for placing your order:

1. (Most affordable) You send in your leaking Right 5th Bow Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($230 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

P/N: 6559A064

Price
$200.00
Quick view

There are two options for placing your order:

1. (Most affordable) You send in your leaking Left Secondary Bow Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($230 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

P/N: 6559A060

Price
$200.00
Quick view

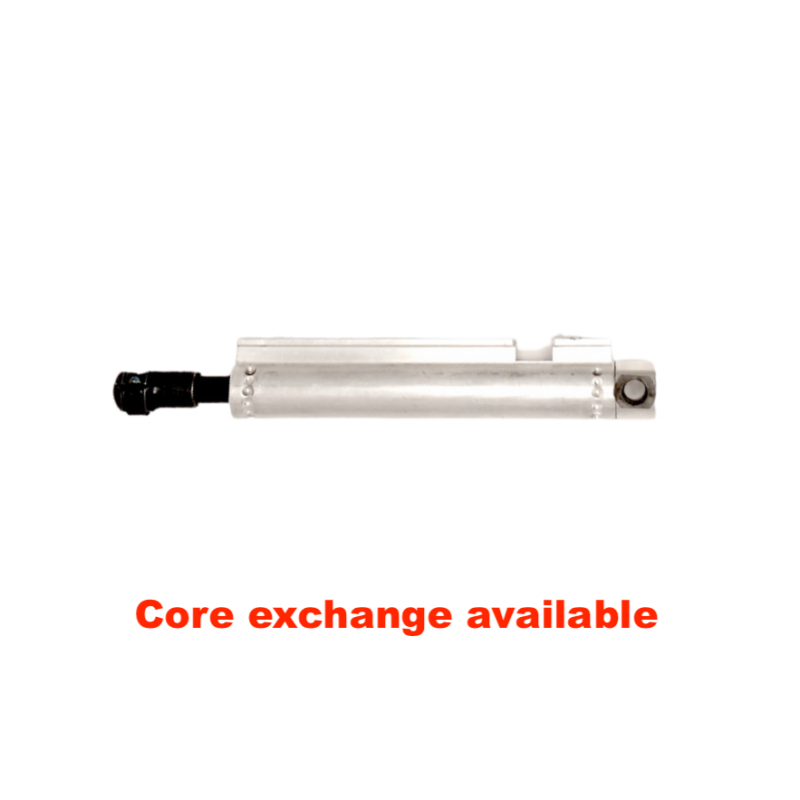

There are two options for placing your order:

1. (Most affordable) You send in your leaking Right Secondary Bow Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($230 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

P/N: 6559A060

The engravings on the cylinder housing are not the Mitsubishi part number. You can, however, identify the part as follows: the middle line of engravings typically reads 2003-030-B or 2003-030-C

Price
$200.00
Quick view

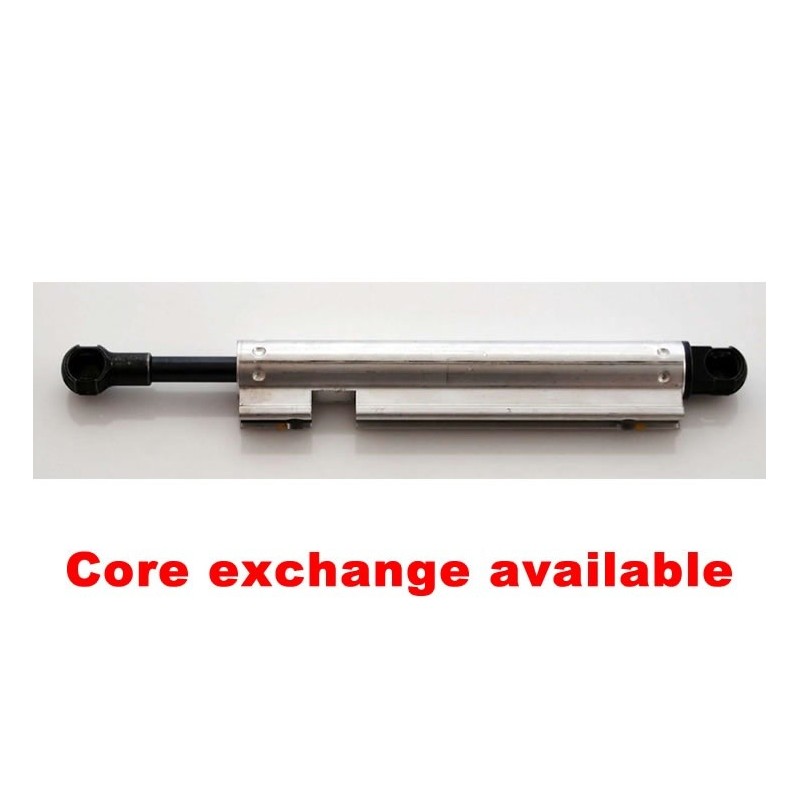

There are two options for placing your order:

1. (Most affordable) You send in your leaking Tonneau Cover Latch Cylinder, and Top Hydraulics rebuilds it.

  • Top Hydraulics replaces & upgrades ALL seals in your cylinder with our superior proprietary material including rod seals, gland seals, port seals, plug seals and piston seals for a far more reliable seal and much longer service life.

OR

2. (Fastest) Core Exchange Option where Top Hydraulics ships the part from our inventory first ($230 plus a $150 deposit).

  • Option 2 means that you get a rebuilt & upgraded cylinder from Top Hydraulics' inventory first, then you ship back your original part for credit of your $150 core refund. You get a cylinder that has been rebuilt to outlast and outperform OEM replacements.

P/N: MN181808

Shown as part of PNC Part Spec 78146C in Mitsubishi parts diagrams
Part number typically engraved on the cylinder: 2007-030-B

Price
$200.00
Quick view

Hydraulic Line "21" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the shaft end of the left 5th bow cylinder.

Price
$149.99
Quick view

Hydraulic Line "22" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the left 5th bow cylinder.

Price
$149.99
Quick view

Hydraulic Line "71" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This hose runs from the pump to the shaft end of the left secondary cylinder.

Price
$149.99
Quick view

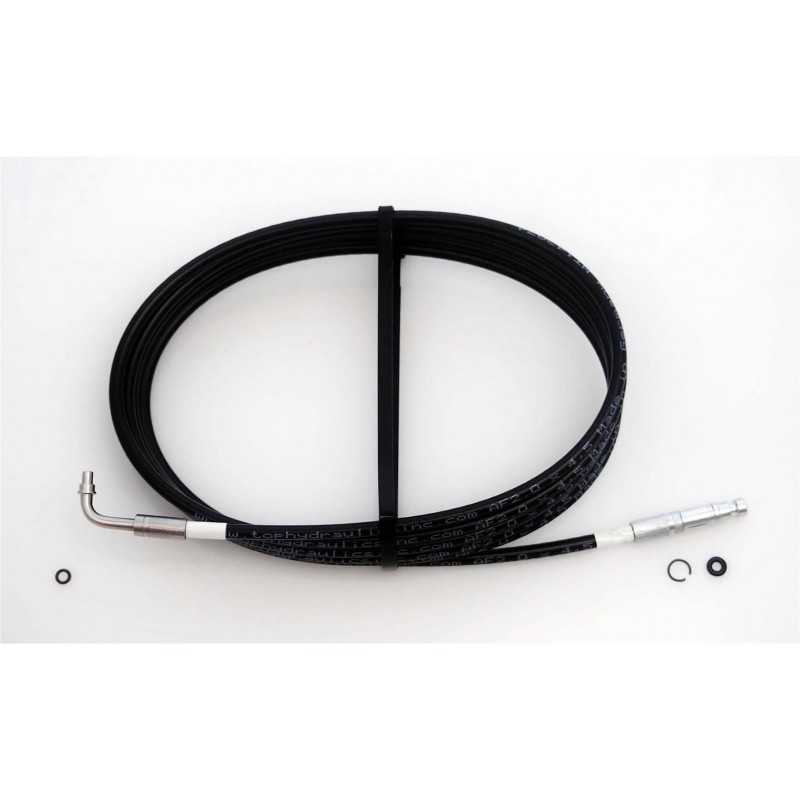

Hydraulic Line "72" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the left secondary cylinder.

Price
$149.99
Quick view

Hydraulic Line "11" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the shaft end of the left hinge cylinder.

Price
$149.99
Quick view

Hydraulic Line "12" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the left hinge cylinder.

Price
$149.99
Quick view

Hydraulic Line "13" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the shaft end of the right hinge cylinder.

Price
$149.99
Quick view

Hydraulic Line "14" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the right hinge cylinder.

Price
$149.99
Quick view

Hydraulic Line "23" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the shaft end of the right 5th bow cylinder.

Price
$149.99
Quick view

Hydraulic Line "24" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the right 5th bow cylinder.

Price
$149.99
Quick view

Hydraulic Line "31" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the shaft end of the tonneau cylinder.

Price
$149.99
Quick view

Hydraulic Line "32" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the tonneau cylinder.

Price
$149.99
Quick view

Hydraulic Line "55" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the shaft end of the tonneau cover lock cylinder.

Price
$149.99
Quick view

Hydraulic Line "56" for Mitsubishi Eclipse Spider. Comes with o-rings for both hose ends and instructions for installation on the cylinder side.
This line runs from the pump to the bottom end of the tonneau cover lock cylinder.

Price
$149.99
