Right Bow Tension Cylinder Rebuild & Upgrade Service 00-06 323CI, 325CI, 330CI, M3 54347025599, 54347025600
  • Right Bow Tension Cylinder Rebuild & Upgrade Service 00-06 323CI, 325CI, 330CI, M3 54347025599, 54347025600
  • 54347025593 54347025599 54347025600 54348243269 54348236956 54347025592

Right Bow Tension Cylinder Rebuild & Upgrade Service 00-06 323CI, 325CI, 330CI, M3

$275.00

It is highly recommended to upgrade the bow tension cylinders in pairs. You send in your cylinder(s) first.

Core exchange is available only for pairs of bow tension cylinders - see our separate listing.
Top Hydraulics replaces and upgrades all seals in this cylinder, including the port seals where the hoses go into the cylinder housing.

Order Method:
Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

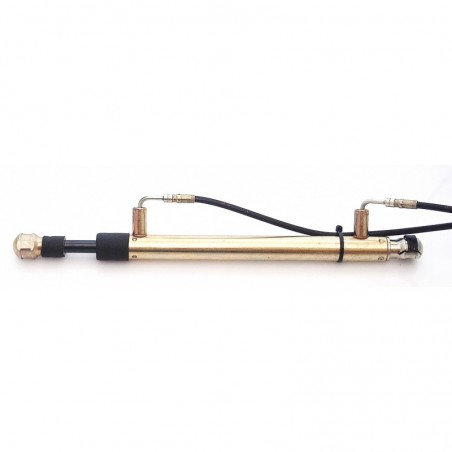

Right bow tension cylinder rebuild service for 00-06 323CI, 325CI, 330CI, M3





Please see removal instructions for all cylinders and the most frequently failing hydraulic lines in our DIY section: https://www.tophydraulics.com/content/7-diy-instructions.



See removal instructions https://www.tophydraulics.com/e46bowcylinders.pdf in our DIY section. You remove your cylinders you would like to have rebuilt, and send them to us. Core exchange (from our stock) is available ONLY for full sets of BMW cylinders. See removal instructions in our DIY section.

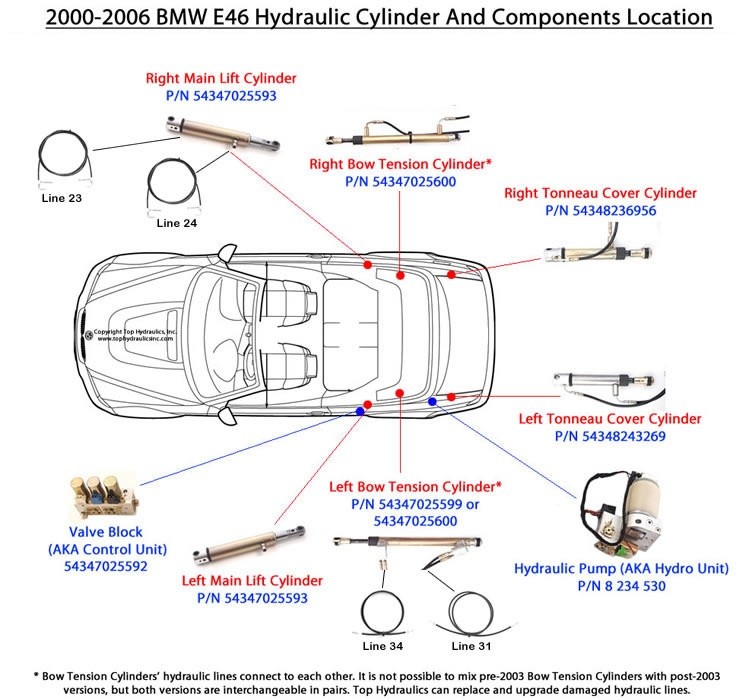

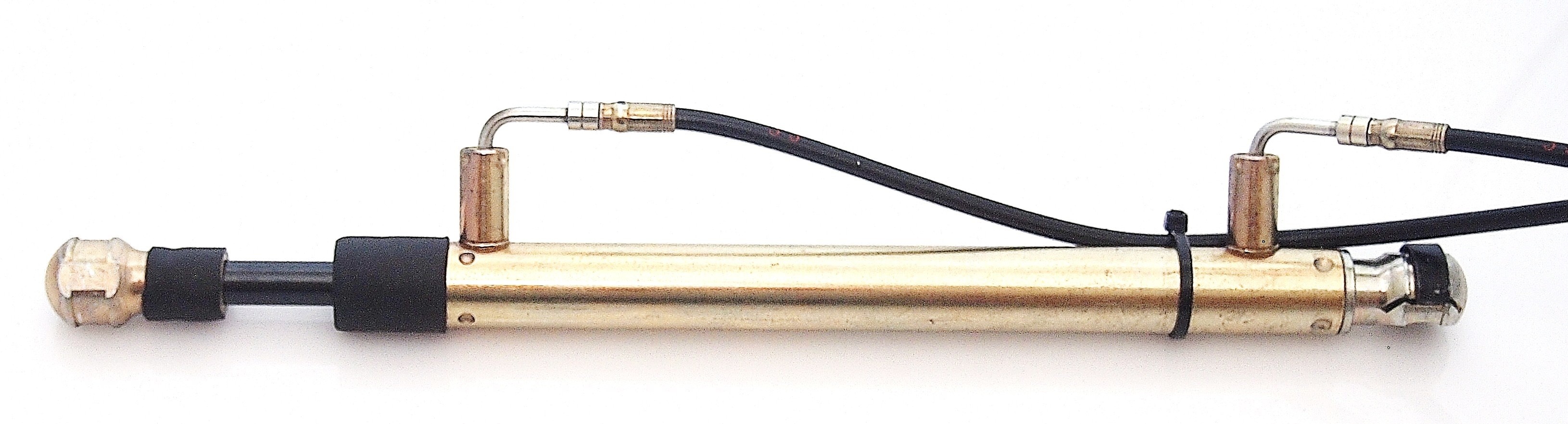

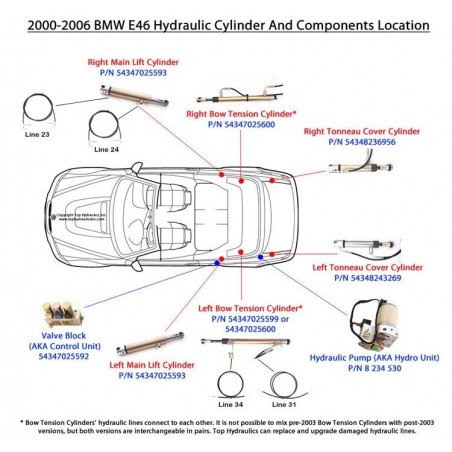

NOTE: There was a change in cylinder design in 2002 or 2003, depending on country. Earlier model years have the detachable aluminum piece on the left side bow tension cylinder, which has the hydraulic lines permanently attached to it. This version is shown in the above picture. Newer model years have the hydraulic lines individually detachable from the left bow tension cylinder. In newer versions, lines 31 and 34 going to the valve block can be removed individually. Older and newer version bow tension cylinders (aka tension bar cylinders) are fully interchangeable as pairs, but not individually.

The right side cylinder always has the lines permanently attached, and the lines can be removed from the left side cylinder (clip on old version and T10 Torx bolt on new version).



P/Ns 54347025599, 54347025600



International shipping: One or two of these cylinders can be return shipped in an International Priority Mail or Express Mail Envelope (we box them up inside the envelope).

54347025599, 54347025600
