Replacement Travel Sensor
  • Replacement Travel Sensor
  • Replacement Travel Sensor

Chevy SSR Roof Panel Cylinder Travel Sensor

$50.00

Brand new travel sensor for SSR convertible top cylinders. There are seven of these particular sensors in your top system.

This single sensor comes with about 12" of wire to splice into your vehicle's existing wiring harness.

Used in roof panel cylinders 89044556, 89044555, 89044554 and latch cylinders 88980812

Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

Travel sensor/Hall sensor

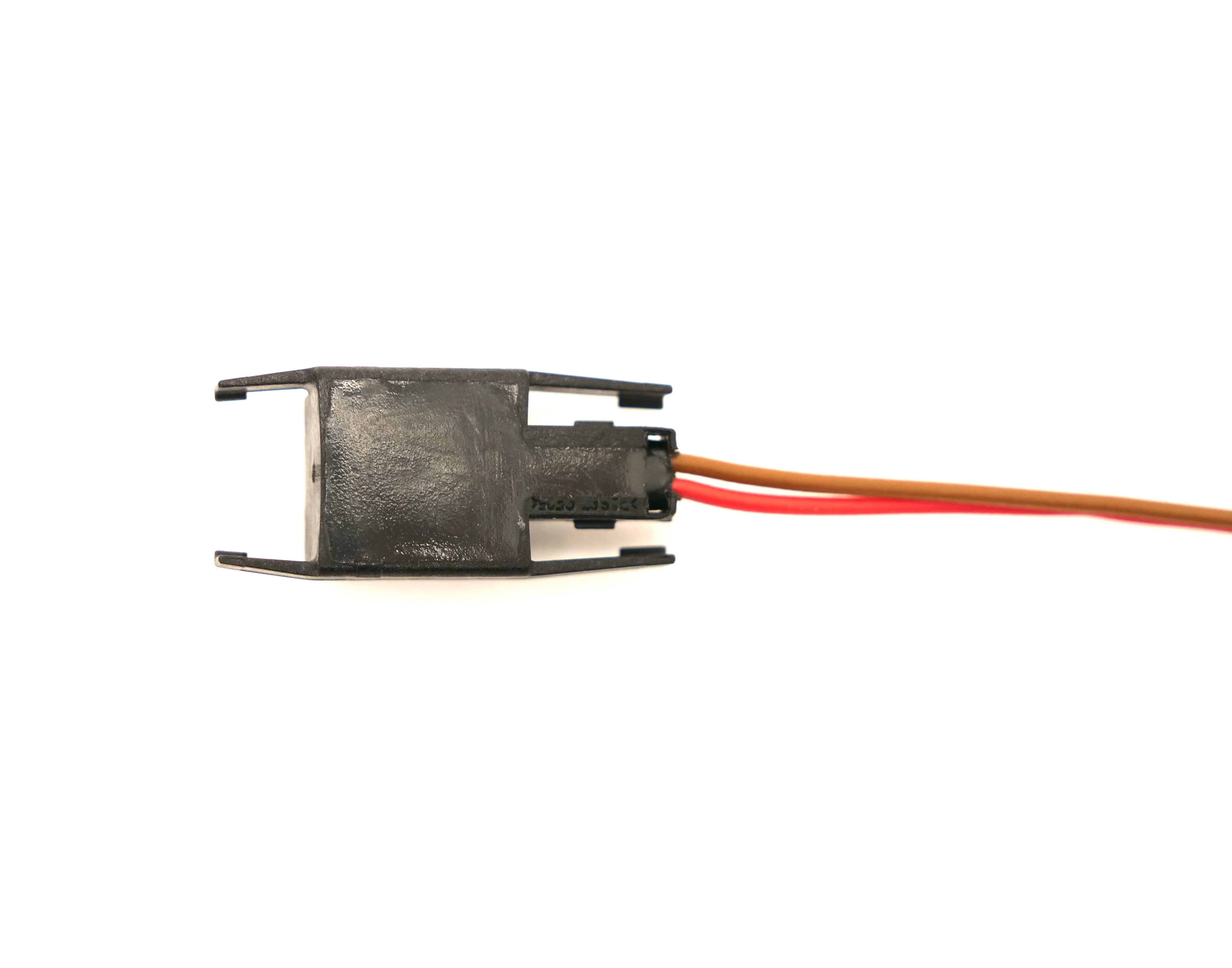

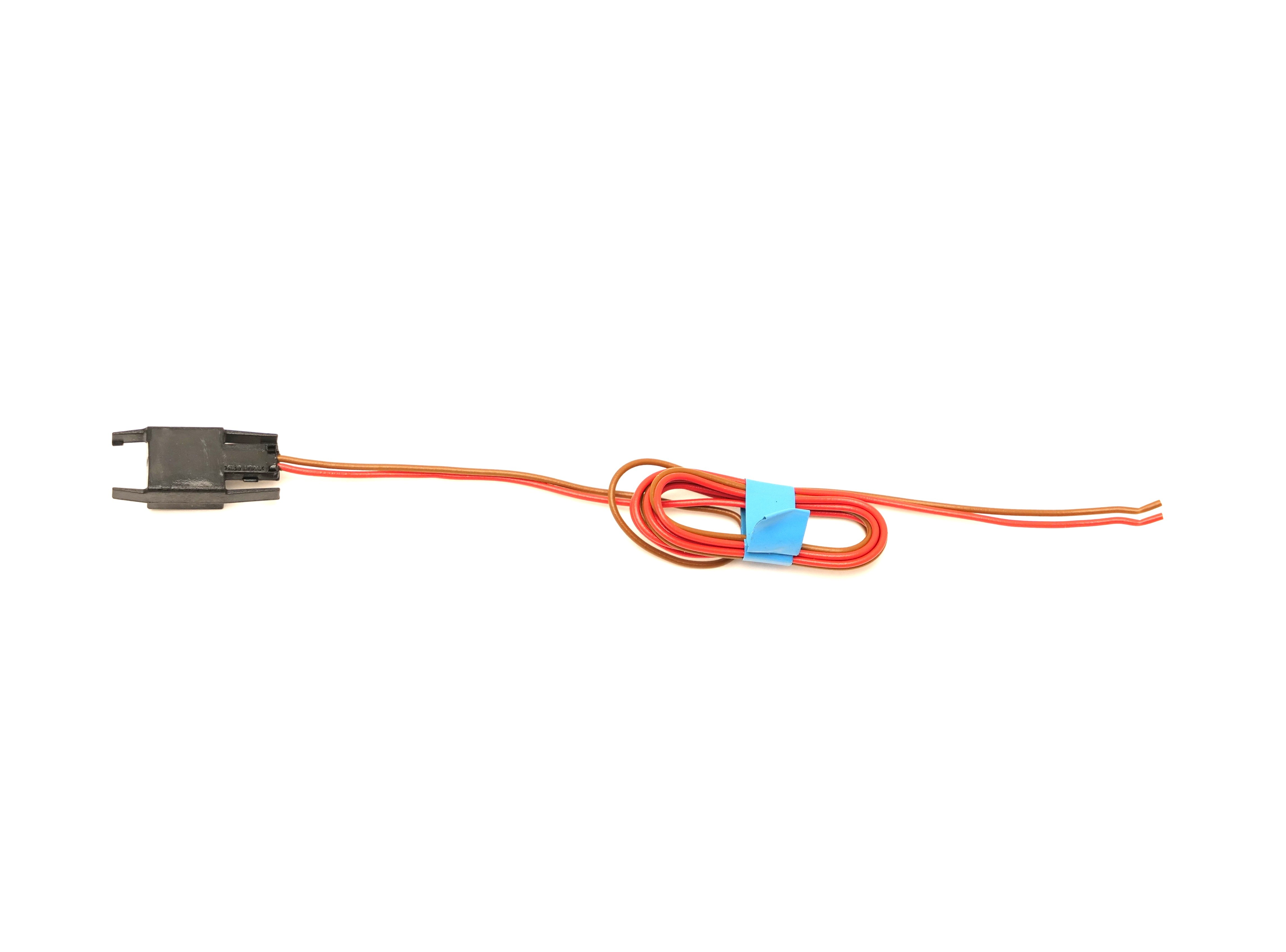

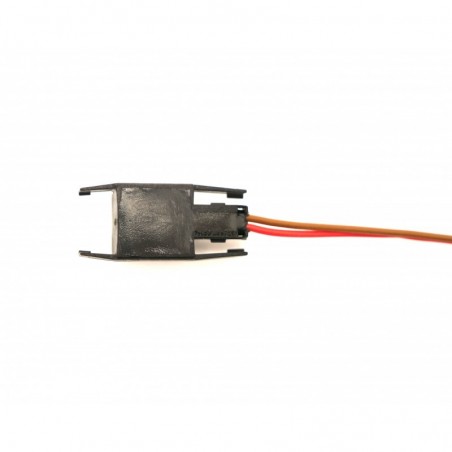

Brand new, directly from Chevy's former supplier's supplier. This is a solid state Hall sensor, also known as travel sensor. It comes with about 12" of wire and gets spliced directly into your wiring harness. The sensor clips into the rail of the aluminum cylinder housing.

There are seven of these particular sensors in your top system. Used in Roof panel cylinders 89044556 (RH main lift cylinder - uses two travel sensors), 89044555 (RH stowage cover extension cylinder - uses two travel sensors), 89044554 (RH storage cover lift cylinder, uses one travel sensor) and latch cylinders 88980812 (LH and RH stowage cover lock cylinders - each uses one travel sensor).

These sensors detect whether the shaft on your cylinder is extended or retracted by measuring the permeability of the magnetic field nearby. They are more reliable than regular micro switches. The most common cause for failure is when someone or something pulls too hard on their wires.

Before condemning the travel sensor itself, be sure that the wires routed to it are not shorting or broken in places where they flex a lot.

Hall sensor

Specific References

Related Products:

The Chevy SSR has eight hydraulic cylinders that actuate and lock the cover and top.  Core exchange is currently not available. You send us the cylinder(s) you need to have upgraded, and we will turn them around in 1-3 days. Using the best seals available, far exceeding OEM quality.

Chevy part number:

88980812

Price
$150.00
Quick view

Upgraded Hydraulic Line #14 manufactured by Top Hydraulics, Inc. for Chevy SSR Convertible.  This line runs from the bottom end of the right side Main Lift cylinder to the Hydraulic Pump.

Price
$149.99
Quick view

The Chevy SSR has eight hydraulic cylinders that actuate and lock the cover and top. Up-front shipping aka core exchange is currently not available. You send us the cylinder(s) you need to have upgraded, and we will turn them around in 1-3 days. Using the best seals available, far exceeding OEM quality.

Chevy part number:

88980930

Price
$150.00
Quick view

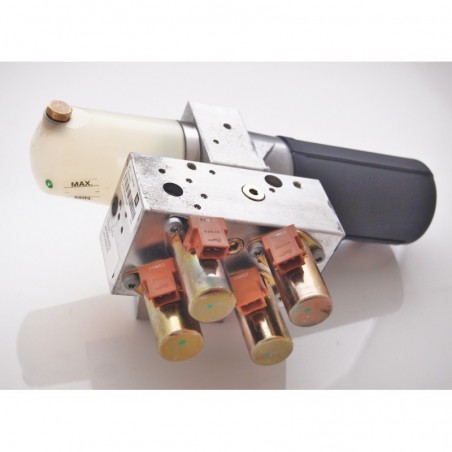

Send in your malfunctioning pump, and we rebuild it. Internal seals get replaced with superior material. Compromised electric motors get exchanged, the valve block gets serviced. Malfunctioning solenoids get serviced or replaced.

Send in your pump with or without mounting frame.

GM p/n 1600223 and similar

Price
$500.00
Quick view

The Chevy SSR has eight hydraulic cylinders that actuate and lock the cover and top.  Core exchange is currently not available. You send us the cylinder(s) you need to have upgraded, and we will turn them around in 1-3 days. Using the best seals available, far exceeding OEM quality.

Chevy part number:

88980385

Price
$150.00
Quick view

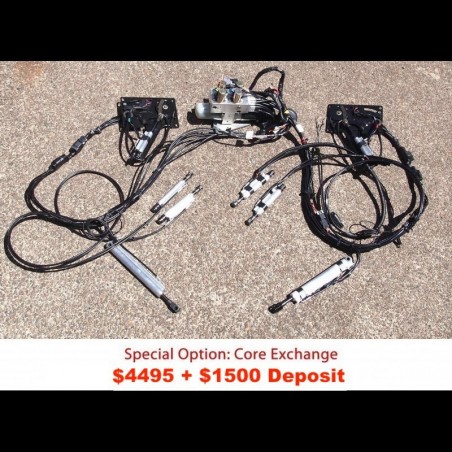

Order a complete, upgraded Chevy SSR top hydraulic system from our inventory.  Includes the full set of cylinders, the hydraulic pump unit PLUS a new full set of Top Hydraulics' upgraded hydraulic hoses.  The top system ships filled, fully bled and with the travel sensors already mounted to the cylinders for quick and easy installation.
