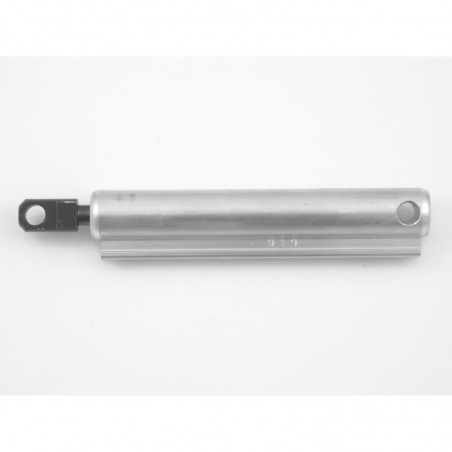

PT Cruiser Top Lift Cylinder
$160.00
Chrysler | 2004-2008 PT Cruiser Convertible
Rebuild service for main lift cylinder(s)
The PT Cruiser convertible has two lift cylinders for the convertible top. Top Hydraulics' seal material is far superior to the OEM's.
Send in your cylinder(s) to be rebuilt. Rebuild service is $160 per cylinder plus shipping.
-OR-
Order from our stock with core exchange ($200 per cylinder shipping first from our inventory, plus $150/ea deposit plus shipping).
Select the order method below and the price will display accordingly.
There are three rows of number engraved on the cylinder. The middle row identifies the part with the following three being fully interchangeable:
1657-030-A
1657-030-B
1657-030-C
No sales tax for orders in the USA
We provide world class technical support
3-year standard warranty (should last decades)
Rebuild/Upgrade service for main drive/lift cylinder(s), using best seals available
The price is per cylinder - it is highly recommended to upgrade in pairs! The PT Cruiser convertible has two lift cylinders for the convertible top. Top Hydraulics' rebuild/upgrade service makes these cylinders better than new, as our seal material is far superior to the OEM's. We also improve on the size and geometry of four seals inside the cylinders. A total of seven seals per cylinder gets upgraded, including rod seal, piston seal, gland seal, cap seal, wiper, and port seals.
Parts from our inventory ship with bushings but without line clips.
Make sure to fully retract the polished cylinder shaft before removing the hydraulic line clips, so that an accidentally slipping tool cannot damage the shaft on the polished surface that slides through the seal. Damaged shafts can be replaced, but there is a surcharge for that (or your core refund will be reduced if you choose core exchange).
Common engraving on the cylinder:
1657-030-A or 1657-030-B or 1657-030-C
Note: you will have to refill the hydraulic pump with fluid. The system is self venting, and the air from the cylinder(s) will eventually end up in the reservoir. It can take several cycles to get all air out of the system. Keep topping off the reservoir until the fluid level does not drop below the fill mark any more. You can fill the pump slowly with a syringe or a squirt bottle through the fill plug in the middle, on top of the pump. You may need to use pliers or vise grips to loosen the plug if you end up stripping the 5-mm inside hex. The filling process through the fill plug is slow. You can speed it up a little by manually pulling up one or both of the cylinder shafts while filling the pump - this creates a vacuum in the reservoir. We recommend against taking off the reservoir, because you might damage the reservoir or its o-ring in the process. In particular, we recommend against drilling a hole in the reservoir. You will be introducing foreign particles into the system, plus the reservoir gets pressurized when the hydraulic cylinders retract.
Possible fluids to use:
FeBi 02615
Aral Vitamol
Mercedes fluid p/n 000 989 9103
Pentosin CHF-11S
Mopar 05127381AA
Univys 26
All fluids above will mix with each other or with the original fluid in the pump, and they are safe to use in the system.
