Rebuild/Upgrade Service for '03-'07 Chrysler Crossfire Hydraulic Pump 5142638AA or A193 800 00 30
  • Rebuild/Upgrade Service for '03-'07 Chrysler Crossfire Hydraulic Pump 5142638AA or A193 800 00 30

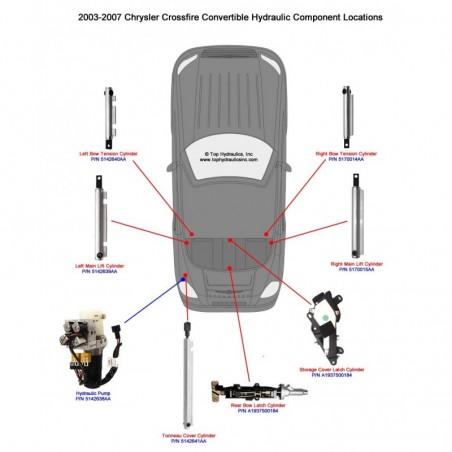

  • Crossfire Convertible Top Hydraulic Pump Unit 542638AA as installed in the trunk's left rear corner
  • 5142639AA 5170015AA 5142640AA 5170014AA 5142641AA 5142641AA 05166559AA

Rebuild/Upgrade Service for '03-'08 Chrysler Crossfire Hydraulic Pump - send in your pump first

$500.00

Hydraulic Pump rebuild Service For '03-'08 Chrysler Crossfire Convertible







You send in your malfunctioning convertible hydraulic pump first to be rebuilt and upgraded.

P/N 5142638AA and similar. Mercedes p/n reference A193 800 00 30.

Order Method:
Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

Includes service of electric motor and valves, motor or solenoid valve replacement if necessary, upgrade of internal seals, and always replacement of the relay.

There may be an additional charge if the pump has been abused, has been in a fire, or is severely corroded.

To remove the pump, you need to make enough room for access, disconnect negative terminal of the battery, remove convertible top control module with a T15 torx wrench, disconnect the wiring harness, disonnect the top of the tonneau cover cylinder by pulling pivot pin and then retracting cylinder shaft all the way, remove the travel sensor (Hall sensor) from the tonneau cylinder, disconnect the hydraulic lines, and unbolt the pump from the chassis. Disconnecting the hydraulic lines requires only that you unbolt the manifold plate on top, which holds all the hydraulic lines, and then pull up a little on each hydraulic line individually. The hydraulic lines will stay within the manifold plate - they are retained by small snap rings, and they will not get mixed up. Before sending the pump to Top Hydraulics, make sure to drain the fluid. You would not want fluid to soak your parcel. Wrap the pump inside a garbage bag or two, buffer the parcel well inside (so that the reservoir and solenoids won't get damaged during shipping), and tape up well on the outside.



International customers: please make sure to ship the pump without the mounting frame, to avoid additional shipping cost. Choose "Express Mail Flat Rate Box" in international shipping https://www.tophydraulics.com/72-international-shipping.html

5142638AA

Specific References

Related Products:

New Hydraulic Hose Line # 34 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the bottom end of the Tonneau Cover Lift cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

This is a single hose #34 from hose assembly P/N: 5142635AA

(P/N 5142635AA corresponds to the pair of hoses #33 and #34)

Price
$149.99
Quick view

New Hydraulic Hose Line # 11 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the shaft end of the left Main Lift cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

This is a single hose #11 from hose assembly P/N: 5142632AA

(P/N 5142632AA corresponds to the pair of hoses #11 and #12)

Price
$149.99
Quick view

Special Option: Core Exchange for Full Set of Chrysler Crossfire Top Hydraulic Cylinders

Special option: Core exchange. Price includes $900 deposit. This means you pay $1200 plus $900 deposit plus shipping,  then you get a rebuilt & upgraded set of cylinders from Top Hydraulics' inventory first, then you ship back your original set to recover your deposit. The deposit gets refunded in full if the cores do not have serious damage to the metal parts or missing components.

Price
$2,100.00
Quick view

The OEM cylinders will all eventually fail due to chemical decay - Top Hydraulics upgrades the seals with far superior material.

Send in your right bow tension cylinder to be upgraded, using the best seals available.
-OR-
Order a cylinder from our inventory with core exchange. (includes $50 inventory surcharge and $200 deposit)

P/N 5170014AA, sometimes marked 1721-030-B

Price
$200.00
Quick view

Expedited Core Exchange Option where Top Hydraulics ships parts from our inventory first is $500 plus a $300 Refundable Core Charge.
This means that you get a rebuilt & upgraded pump from Top Hydraulics' inventory first, then you ship back your original pump for credit of your $450 core refund. You get a pump that has been rebuilt to outlast and outperform brand new ones. Chrysler part number 68027037AA.

Price
$800.00
Quick view

New Hydraulic Hose Line # 23 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the shaft end of the right Rear Bow cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

This is a single hose #23 from hose assembly P/N: 5142634AA

(P/N 5142634AA corresponds to the pair of hoses #23 and #24)

Price
$149.99
Quick view

The OEM cylinders will all eventually fail due to chemical decay - Top Hydraulics upgrades the seals with far superior material.

Send in your right main lift cylinder to be upgraded, making the part better than new inside.

Expedited Core Exchange Option, where we ship a part from our inventory first, is $250 plus $200 deposit. (Currently available only in the US)

P/N 5170015AA, sometimes marked 1758-030-B or similar

Price
$200.00
Quick view

New Hydraulic Hose Line # 14 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the bottom end of the right Main Lift cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

This is a single hose #14 from hose assembly P/N: 5142631AA

(P/N 5142631AA corresponds to the pair of hoses #13 and #14)

Price
$149.99
Quick view

New Hydraulic Hose Line # 33 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the shaft end of the Tonneau Cover Lift cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

This is a single hose #33 from hose assembly P/N: 5142635AA

(P/N 5142635AA corresponds to the pair of hoses #33 and #34)

Price
$149.99
Quick view

This cylinder lifts the storage compartment cover. It is located near the pump and easily removed.

The OEM cylinders will all eventually fail due to chemical decay - Top Hydraulics upgrades the seals with far superior material.

Send in your tonneau cover cylinder to be upgraded, using the best seals available.
-OR-
Order a cylinder from our inventory with core exchange. (includes $50 inventory surcharge and $200 deposit)

Engraving on top: 1798-030-A or similar.

Chrysler p/n 5142641AA

Price
$200.00
Quick view

Rebuild/Upgrade Service For '04-'08 Chrysler PT Cruiser Convertible Hydraulic Pump



Service of all moving parts with three years warranty. The pump goes through extensive testing of flow, pressure in both directions, and extended load testing to make sure it exceeds the manufacturer's specs before we ship it back.

Price
$300.00
Quick view

Hydraulic Pump rebuild Service For '07-'10 Chrysler Sebring Convertible



You send in your malfunctioning convertible hydraulic pump first to be rebuilt and upgraded.

Chrysler part number 68027037AA

Price
$450.00
Quick view

You send in your Tonneau cover latch cylinder 05166559AA aka A 193 750 0183 (aka 1937500183 or A 193 750 01 83), and Top Hydraulics upgrades it with far superior seals, making it better than new!

-OR-

Order from our inventory with core exchange. (Core exchange option is subject to $30 surcharge plus $100 deposit.)

Please note:  Latch mechanism not included.  We ship you the cylinder only.

Price
$65.00
Quick view

The OEM cylinders will all eventually fail due to chemical decay - Top Hydraulics upgrades the seals with far superior material.

Send in your left bow tension cylinder to be upgraded, using the best seals available.
-OR-
Order a cylinder from our inventory with core exchange. (includes $50 inventory surcharge and $200 deposit)

P/N 5142640AA  or 1757-038-B

Price
$200.00
Quick view

New Hydraulic Hose Line # 13 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the shaft end of the right Main Lift cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

This is a single hose #13 from hose assembly P/N: 5142631AA

(P/N 5142631AA corresponds to the pair of hoses #13 and #14)

Price
$149.99
Quick view

New Hydraulic Hose Line # 44 for Chrysler Crossfire Roadsters.

This hose goes from the pump to the rear end of the bow lock cylinder. Each hose has a two-digit number stamped on it in white or red ink near the metal fitting. This number is also stamped on the cylinder port where the line enters the cylinder, and on the pump retaining plate where the line enters the pump.

Price
$149.99
Quick view
