Rebuild/Upgrade Service for your Crossfire Left Main Lift Cylinder - send in your cylinder first
  • Rebuild/Upgrade Service for your Crossfire Left Main Lift Cylinder - send in your cylinder first
  • 5142639AA 5170015AA 5142640AA 5170014AA 5142641AA 5142641AA 05166559AA

Left Main Lift Cylinder - Chrysler Crossfire

$200.00

The OEM cylinders will all eventually fail due to chemical decay - Top Hydraulics upgrades the seals with far superior material.

Send in your left main lift cylinder to be upgraded, using the best seals available.
-OR-
Order a cylinder from our inventory with core exchange. (includes $50 inventory surcharge and $200 deposit)

Please see notes below about our core exchange options

P/N 5142639AA, sometimes marked 1757-030-A, 1757-030-B or 1757-038-B

Order Method:
Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

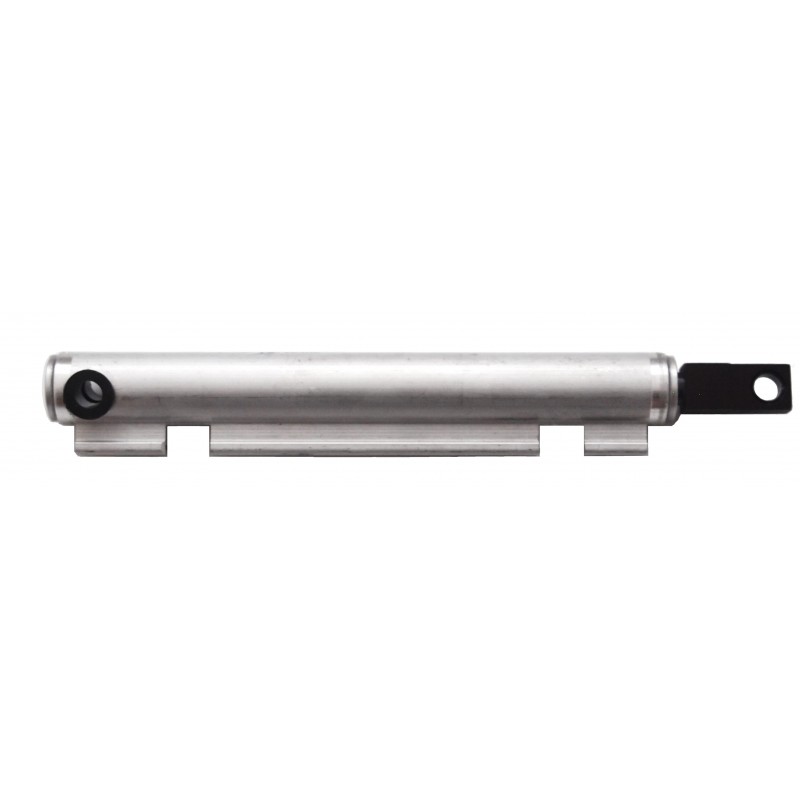

Chrysler Crossfire Left Main Lift Cylinder

Send in your left main lift cylinder to be upgraded, using the best seals available.
-OR-
Order a cylinder from our inventory with core exchange. (includes $50 inventory surcharge and $200 deposit)



The OEM seals will all eventually fail, accelerated by heat and impurities or water in the hydraulic fluid - Top Hydraulics replaces the chemically decaying seals with far superior material. You send in your cylinders, and we turn them around quickly.



Note: retract the polished shaft on the cylinder before removing the hydraulic line clips. Otherwise, an accidentally slipping tool may scratch or dent the polished shaft so deeply that we need to replace the shaft at a surcharge.

Please note: Our rebuild/upgrade service does not include service or replacement of the travel sensor(s).  If you do need a replacement sensor, we sell OEM sensors for $50 each.

Hydraulic line hook-up: number 13 on top and number 14 on the bottom.

If your cylinder has a white ring of corrosion at the top of the shaft where it meets the clevis then it likely has some rust damage.
The corrosion and rust damage is most often caused by water intrusion due to a failed weather seal on the vehicle.
If your cylinder has a rust-damaged shaft we can replace it, but there is an additional charge of $100 for a replacement shaft.
See the photo below for an example:

5142639AA
