New A207 E-Class Single Hydraulic Line 66
$149.99
New hydraulic line # 66 for Mercedes A207 E-Class
Goes from the pump to the bottom line port on the front lock cylinder.
Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.
Comes with snap ring installation tool for installation on the pump end.
No sales tax for orders in the USA
We provide world class technical support
3-year standard warranty (should last decades)
New hydraulic line # 66 for Mercedes A207 E-Class
Goes from the pump to the bottom line port on the front lock cylinder.
This is a single hose that would normally be part of a set sold by Mercedes as p/n 207 800 07 81.
OEM hoses have very thin walls, which makes them fail easily. Top Hydraulics' hoses are 0.5 mm thicker, which makes them far superior without compromising ease of installation.

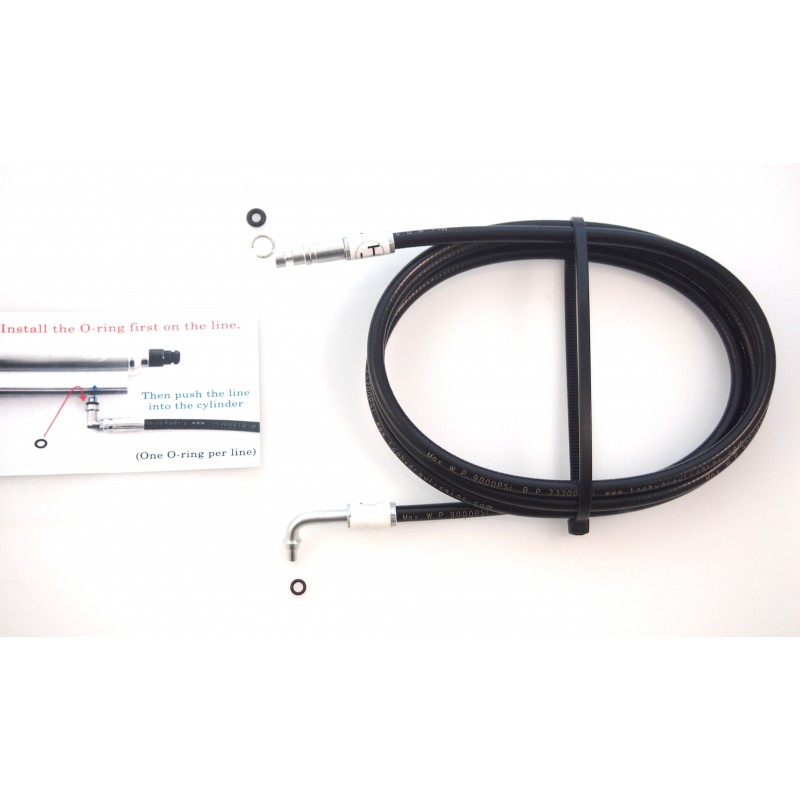

Line comes with o-ring for each end and retaining clip for attachment to the hydraulic pump's manifold.
For installation to cylinder hydraulic line port, first remove the old o-ring from the cylinder with a soft tool. Push new o-ring on the line before inserting line into the cylinder.
Specific References
Related Products:
New Hydraulic Hose Line #96
Mercedes p/n 2088000781
goes from the pump to the bottom of the right bow tension cylinder 2088000172
Made in the USA with German hose material. Always in stock. Comes with o-ring, snap ring, and instructions how to replace the line at the pump end.
Price
$199.99
Reseal service for Roll-Over Bar "Tombstone" Hydraulic Cylinder
Replaces and upgrades all seals inside the roll-over bar's hydraulic cylinder. Send in your part first for rebuild service. See photo for which part you should send us - do not send us the whole roll-bar/headrest assembly!
Price
$350.00
Goes from the pump to the top of the left storage cover lift cylinder.
This is a single hose that would normally be part of a set sold by Mercedes as p/n 209 800 05 81.
Comes with o-ring, snap ring, and snap ring installation tool for installation on the pump end.
There is no o-ring required for installation on the cylinder end, and you can re-use the original hydraulic line clip
Price
$119.99
Order a rebuilt and upgraded hydraulic pump from our inventory, and send your old one back for a $300 core refund. Price shown includes the core deposit.
Note: Ships without mounting frame
Mercedes p/n A2098000148, A2098000248, A2098000548, A2098000648
Part numbers printed on the pumps are typically A2098000130, A2098000230, 2308000330 or A2098000630, which are not actual Mercedes part numbers.
Please note that there is a $200 surcharge for the fairly rare pump version with power trunk option (part number A2098000130/A2098000648), which was optional equipment on model years 2007-2009.
Price
$950.00
Mercedes part number A 171 800 03 72.
$95 for Standard Rebuild Service, where you send in your cylinder first to be rebuilt.
Optional core exchange (where we ship a part first from our inventory) is $160 plus $120 deposit.
Top Hydraulics replaces and upgrades all port seals (where the hoses go in), the cup-shaped rod seal and the piston seal. Top Hydraulics' rebuilt cylinders are far superior on the inside to new parts from the dealer, at a small fraction of Mercedes' list price!
Price
$120.00
Reseal service for Roll-Over Bar Hydraulic Cylinder, part of assembly p/n A 208 860 00 32
Replaces and upgrades all seals inside the roll-over bar's hydraulic cylinder. Send in your part first for rebuild service or select the core exchange option where we send one from our inventory first. See photo for which part you should send us - do not send us the whole roll-bar/headrest assembly!
Price
$350.00
Rebuild & upgrade service for Mercedes A207 E-Class
Fabric Bow Tension Cylinder
Mercedes part number 2098000972, aka A209 800 09 72
Top Hydraulics makes these parts better than new inside, with seven new, superior seals and reinforcement against the occasional "explosion" known to happen on OEM cylinders' bottoms.
Core exchange is available, see below
Price
$150.00
Mercedes part number A 170 800 03 72.
$115 for Standard Rebuild Service, where you send in your cylinder first to be rebuilt.
Optional core exchange (where we ship a part first from our inventory) is $155 plus $160 deposit.
Top Hydraulics replaces and upgrades all port seals (where the hoses go in) and the cup-shaped rod seal. Top Hydraulics' rebuilt cylinders are far superior on the inside to new parts from the dealer, at a small fraction of Mercedes' list price!
Price
$115.00
Convertible top cylinders rebuild/upgrade service (using best seals available) for Mercedes W208 CLK Class. Includes 7 rams for complete replacement/upgrade of convertible soft top lifting system. CLK320, CLK430, CLK55AMG.
Core Exchange option includes $600 Refundable Core Charge, plus surcharge for inventory management.
Price
$800.00
New hydraulic line for 1990-1994 Mercedes R129 SL-Class
This is a single hose that runs from the hydraulic pump reservoir to the right side solenoid valve block.
Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.
Price
$199.99
Rebuild & upgrade service for Mercedes CLK A209/W209-Class
Fabric Bow Tension Cylinder
Mercedes part number 2098000972, aka A209 800 09 72
Top Hydraulics makes these parts better than new inside, with seven new, superior seals and reinforcement against the occasional "explosion" known to happen on OEM cylinders' bottoms.
Core exchange is available, see below
Price
$150.00
This is a Rebuild and upgrade service - Send us your parts first
Core exchange is not available for these parts unless you order the complete set of cylinders.
It is highly recommended to rebuild and upgrade these cylinders in pairs, as they tend to fail as a pair.
P/N A124 800 00 72 aka 1248000072
Price
$135.00
Mercedes part number A 170 800 02 72.
$115 for Standard Rebuild Service, where you send in your cylinder first to be rebuilt.
Optional core exchange (where we ship a part first from our inventory) is $155 plus $160 deposit.
Top Hydraulics replaces and upgrades all port seals (where the hoses go in) and the cup-shaped rod seal. Top Hydraulics' rebuilt cylinders are far superior on the inside to new parts from the dealer, at a small fraction of Mercedes' list price!
Price
$115.00
New Hydraulic Hose Line #70
Mercedes p/n 2088000581
goes from the pump to the bottom of the right top drive cylinder 2088000072
Made in the USA with German hose material. Always in stock. Comes with o-ring, snap ring, and instructions how to replace the line at the pump end.
Price
$199.99
Mercedes W124 E-Class convertible | New Hydraulic Hoses
Pair of replacement hydraulic lines # 44 and # 47 going to the rear bow lock. Replacing Mercedes p/n 1248003881 and 1248003981.
Price
$349.99
You send in your malfunctioning hydraulic valve block, and we rebuild it for $200.
P/N: 1298002378
Price
$200.00
New hydraulic line # 66 for Mercedes A207 E-Class
Goes from the pump to the bottom line port on the front lock cylinder.
Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.
Comes with snap ring installation tool for installation on the pump end.
