Saab 9-3 (93) Aero & Arc Left 5th Bow Cylinder 2003-2011 Rebuild Service - send in your own cylinder first 12833494
  • Saab 9-3 (93) Aero & Arc Left 5th Bow Cylinder 2003-2011 Rebuild Service - send in your own cylinder first 12833494
  • New Generation Saab 9-3 12833515 12833508 12833509 12833494 12833495 12833501 12833502  12833516

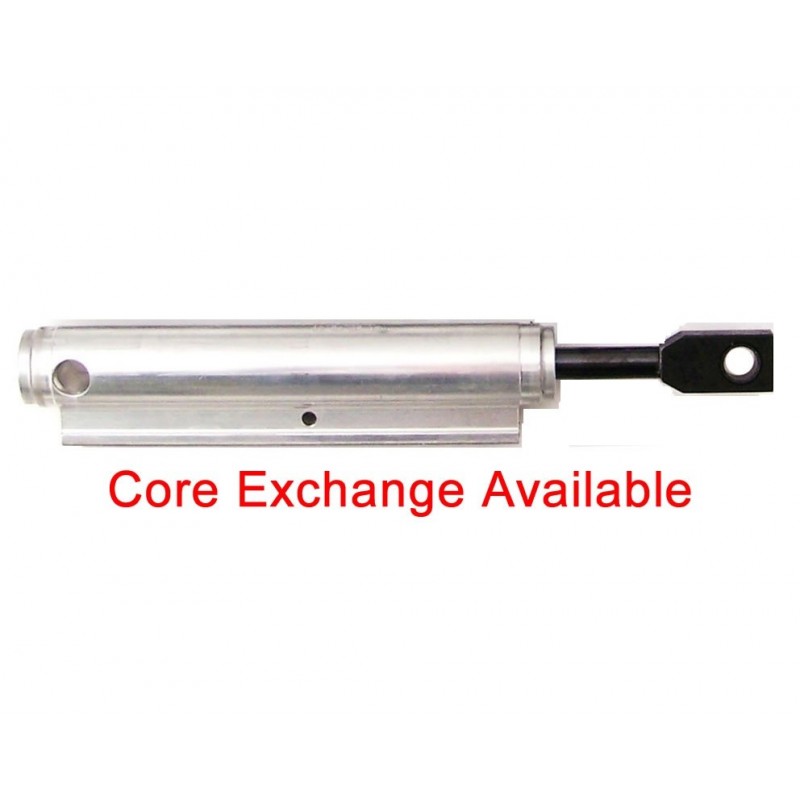

Saab 9-3 (93) Aero & Arc Left 5th Bow Tension Cylinder 2003-2011

$200.00

Price listed is for Standard Rebuild Service- Send in your cylinder for Rebuild & Upgrade service, or order directly from our stock by selecting "Order now with core exchange" below.

Optional core exchange includes a $120 refundable core deposit.

P/N 12833508. All internal seals get upgraded, guaranteed much better than a brand new part.

Order Method:
Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

Send in your cylinder for Rebuild & Upgrade service, or order directly from our stock by selecting "Order now with core exchange" above.

Saab 9-3 (93) Aero & Arc Rebuilt Cylinders

2003-2011 Left 5th Bow Tension Cylinder AKA Cylinder Bow #6

See link to DIY removal instructions below.

Model years 2003 and up have seven cylinders that actuate the soft top and its latches. All cylinders are very similar to each other, and it is hard to tell which one will fail first. The decay rate is generally a function of temperature. The biodegradable seals inside make eventual failure of all rams almost certain, unless the car gets wrecked prematurely.

NOTE:  2003+ Saab 9-3 Bow Tension cylinders are prone to minor rust damage due to failed weather seals on the vehicle.  If your cylinder has rust damage, to be successfully rebuilt it will require a shaft replacement for an additional $100.

1st Bow Cylinder/Bow No. 1 p/n 12833515

6th Bow Cylinder/Bow No. 6 p/n 12833509 (right side) or 12833508 (left side)

7th Bow Cylinder/Bow No. 7 p/n 12833495 (right side) or 12833494 (left side)

Tonneau Cover Cylinder p/n 12833502 (right side) or 12833501 (left side)



The polished cylinder shaft must be undamaged for a proper rebuild.
Once we receive your cylinders, the turn around time for Saab cylinders is up to two days for rebuild service, and we will ship the cylinders back to you by Priority U.S. Mail (2-3 days delivery time).

 2003+ Saab 9-3 First Bow Cylinder Removal Guide (PDF)
