New W209 CLK Single Hydraulic Line 11

$149.99

New hydraulic line # 11 for Mercedes W209 CLK-Class

This is a single hose that would normally be part of a set sold by Mercedes as p/n 209 800 01 81

Goes from the pump to the top of the left main lift cylinder (top drive cylinder).

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Quantity



No sales tax for orders in the USA



We provide world class technical support



3-year standard warranty (should last decades)

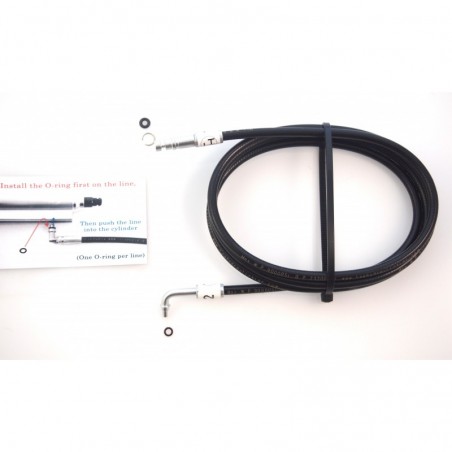

New hydraulic line # 11 for Mercedes W209 CLK-Class

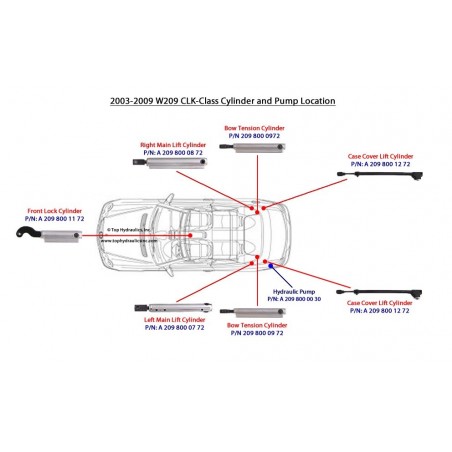

Goes from the pump to the top of the left main lift cylinder (top drive cylinder) 2098000772. It is sold by Mercedes as part of hose set A 209 800 01 81.

Line comes with o-ring for each end and retaining clip for attachment to the hydraulic pump's manifold.

comes with snap ring installation tool for installation on the pump end

OEM hoses have very thin walls, which makes them fail easily. Top Hydraulics' hoses are 0.5 mm thicker, which makes them far superior without compromising ease of installation

For installation to cylinder hydraulic line port, first remove the old o-ring from the cylinder with a soft tool. Push new o-ring on the line before inserting line into the cylinder.

2098000181

Specific References

Related Products:

New hydraulic line # 65 for Mercedes W209 CLK-Class

Goes from the pump to the top port (shaft end) of the front lock cylinder.

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Comes with snap ring installation tool for installation on the pump end

Price
$149.99
Quick view

New hydraulic lines #65 and #66 for Mercedes W209 CLK-Class

These are the two lines that run from the pump to the front lock cylinder.

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Comes with snap ring installation tool for installation on the pump end

A2098000781

Price
$249.99
Quick view

Order a rebuilt and upgraded hydraulic pump from our inventory, and send your old one back for a $300 core refund. Price shown includes the core deposit.

Note: Ships without mounting frame

Mercedes p/n A2098000148, A2098000248, A2098000548, A2098000648
Part numbers printed on the pumps are typically A2098000130, A2098000230 or A2098000330, which are not actual Mercedes part numbers.

Please note that there is a $200 surcharge for the fairly rare pump version with power trunk option (part number A2098000130/A2098000648), which was optional equipment on model years 2007-2009.  (As of July 14, 2022 core exchange for the pump version with power trunk option has been temporarily disabled until we have enough cores back in stock.)

Price
$950.00
Quick view

Top Hydraulics replaces and upgrades all seals with superior material, making the top cylinders in your convertible better than brand new ones. We upgrade the cheap, tiny rod seals with much larger cup seals for maximum service life and for much better tolerance of imperfections on the cylinder shafts. Awesome package deal!

The $1000 price listed is for rebuild/upgrade service (you send your cylinders to be rebuilt).
The price for our core exchange option is $1200 plus a $900 deposit.

Core exchange is currently available only to North American customers.

Price
$1,000.00
Quick view

Hydraulic Pump rebuild Service For '03-'09 Mercedes-Benz W209 CLK-Class



You send in your malfunctioning convertible hydraulic pump for rebuild/upgrade service.

Mercedes p/n A2098000148, A2098000248, A2098000548, A2098000648
Part numbers printed on the pumps are typically A2098000130, A2098000230 or A2098000330, which are not actual Mercedes part numbers.

Please note that there is a $200 surcharge for the fairly rare pump version with power trunk option (part number A2098000130/A2098000648), which was optional equipment on model years 2007-2009.

Price
$600.00
Quick view

New hydraulic line # 32 for Mercedes W209 CLK-Class

Goes from the pump to bottom port of left tonneau cylinder 2098001272.

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Price
$119.99
Quick view

New hydraulic line # 13 for Mercedes W209 CLK-Class

This is single hose that would normally be part of a set sold by Mercedes as p/n 209 800 02 81.

Goes from the pump to the top of the right main lift cylinder (top drive cylinder).

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Price
$149.99
Quick view

goes from the pump to the top of the right storage cover lift cylinder.

This is a single hose that would normally be part of a set sold by Mercedes as p/n 209 800 06 81.

Comes with o-ring, snap ring, and snap ring installation tool for installation on the pump end.

There is no o-ring required for installation on the cylinder end, and you can re-use the original hydraulic line clip.

Price
$149.99
Quick view

Rebuild & upgrade service for Mercedes CLK A209/W209-Class

LH Top Drive (Main Lift) Cylinder

Mercedes part number 2098000772 aka A 209 800 07 72 64.

Top Hydraulics makes these parts better than new inside, with seven new, superior seals and reinforcement against the occasional "explosion" known to happen on OEM cylinders' bottoms.

For optional up-front shipping (also known as core exchange), select YES in the drop down menu - core exchange is $250/ea. plus a $200 deposit. Core exchange is currently not available for international destinations.

Price
$200.00
Quick view

Rebuild/upgrade service for your Mercedes W209 CLK Class front lock cylinder. You send in your cylinder for rebuild, or you pick the up-front shipping option which adds $30 surcharge plus $120 refundable deposit.

The front lock cylinder is usually the first to fail, and the remaining six in the rear will follow shortly...

Mercedes part number A 209 800 11 72 aka 2098001172 or A 209 800 11 72 64

Price
$150.00
Quick view

New hydraulic line # 66 for Mercedes W209 CLK-Class

Goes from the pump to the bottom line port on the front lock cylinder.

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Comes with snap ring installation tool for installation on the pump end.

Price
$149.99
Quick view

New hydraulic line # 22 for Mercedes W209 CLK-Class

This is single hose that would normally be part of a set sold by Mercedes as p/n 209 800 03 81.

Goes from the pump to the bottom of the left bow tension cylinder 2098000972.

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Price
$149.99
Quick view

Rebuild & upgrade service for Mercedes CLK A209/W209-Class

RH Top Drive (Main Lift) Cylinder

Mercedes part number 2098000872 aka A209800087264

Expedited Core Exchange Option, where we ship a part from our inventory first, is $250 plus $200 deposit. (Currently available only in the US)

Top Hydraulics makes these parts better than new inside, with seven new, superior seals and reinforcement against the occasional "explosion" known to happen on OEM cylinders' bottoms.

Price
$200.00
Quick view

New hydraulic line # 21 for Mercedes W209 CLK-Class

This is single hose that would normally be part of a set sold by Mercedes as p/n 209 800 03 81.

Goes from the pump to the top of the left bow tension cylinder 2098000972.

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Price
$149.99
Quick view

Price listed is for Standard Rebuild Service-

Send in your cylinder for Rebuild & Upgrade service ($200), or select the core exchange option, which is $50 more plus a $200 deposit.

Beware: sometimes, people will put vise grips on the cylinder shaft in order to keep the trunk lid open. If we find scratches on the shaft that cannot be massaged out, then we are forced to replace that shaft with a new one for a $100 surcharge.

All internal seals get upgraded, guaranteed much better than a brand new part.

P/N: 209 800 14 72

Note: The power trunk lid is optional equipment.  If you don't know whether or not your vehicle is equipped with this option, look for a red button on the bottom of the trunk lid.  If the red power trunk button is there, your car is equipped with this cylinder.

Price
$200.00
Quick view

New hydraulic line # 14 for Mercedes W209 CLK-Class

This is single hose that would normally be part of a set sold by Mercedes as p/n 209 800 02 81.

Goes from the pump to the bottom of the right main lift cylinder (top drive cylinder).

Top Hydraulics' hose material is more flexible than the OEM material and holds up to ten times the operating pressure in your convertible top hydraulic system.

Price
$149.99
Quick view
